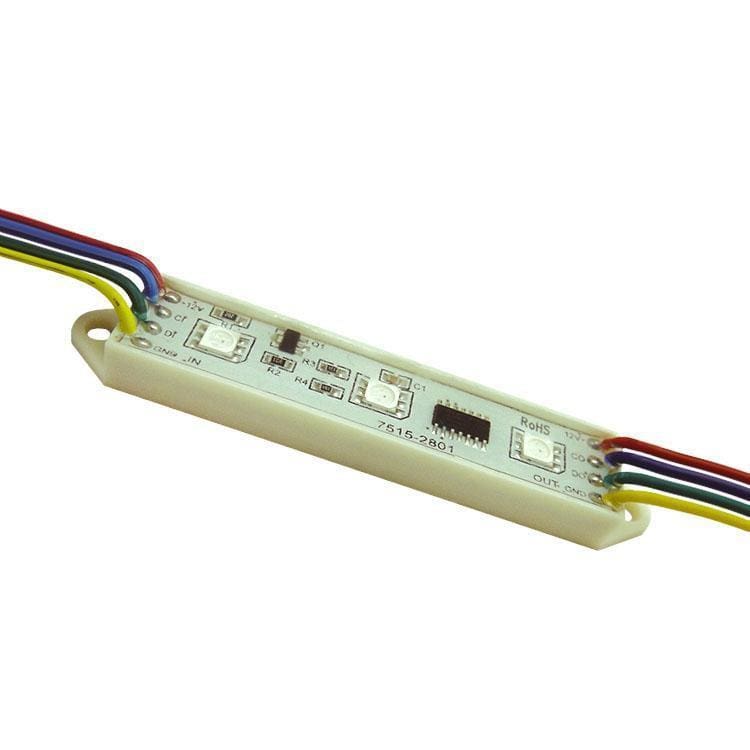

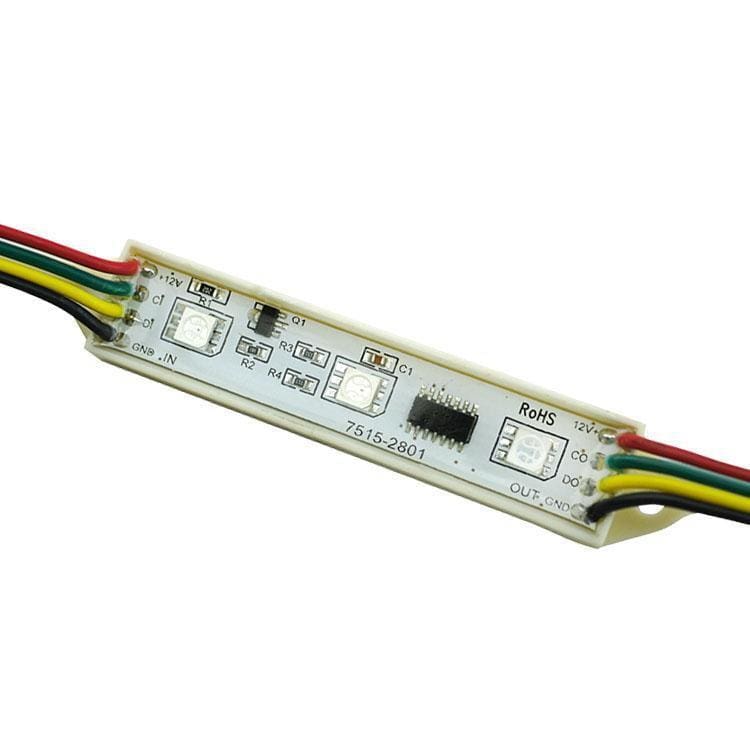

75mm LED Bars - 12V Digital RGB LED Pixels (Strand of 20) - WS2801 IC

DESCRIPTION

These 75mm LED Bars come as strands of 20 with each bar containing 3 RGB LEDs. They are perfect for backlighting, accent and show lighting and even creating large lettering. With extremely low power consumption and a long lifespan thanks to their durability these are perfect for almost any use. They can be controlled using most microcontrollers and work perfectly with Adafruits WS2801 library so you'll be up and glowing in no time.

Each of the bars has a screw hole at either side of the LED section to allow for easy fixing to surfaces. The bars are coated in epoxy to make them waterproof however we would still not recommend prolonged use in wet conditions as it may affect performance.

FEATURES

• Supply Voltage: 12V DC
• Current Draw: ~60mA per bar
• Separation Distance:  80mm
• Power: 0.72W per bar
• Beam Angle: 120 degrees
• IC: WS2801
• Lumen per LED: R15/G30/B12
• Dimensions: 78x18x6mm (LxWxH)

Connections:

• V+: Red
• GND: Black
• DATA: Blue
• CLK: Green

RESOURCES

• Adafruit WS2801 Library
