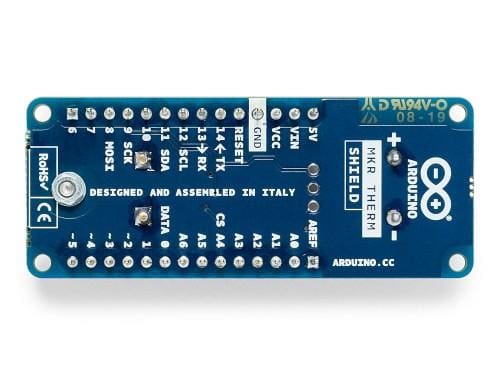

Arduino MKR THERM Shield

by Arduino
SKU 3244
£37.43 inc VAT
£31.19 ex VAT
8 in stock.

The MKR THERM Shield allows a board of the MKR family to acquire temperatures from a thermocouple of type K and a DS18Bxx digital one wire sensor. The Thermocouple is a kind of temperature sensor that offers high accuracy and a wide range of measured temperatures. Its analogue nature requires specific interfacing and this shield relies on the MAX31855 thermocouple digital interface.

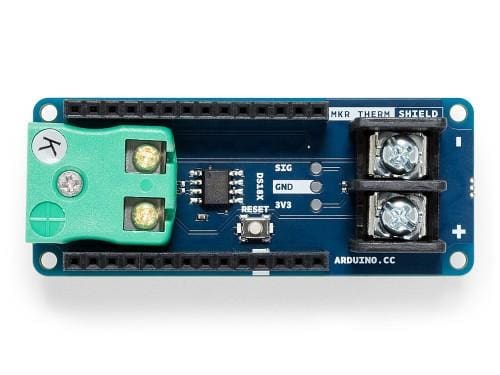

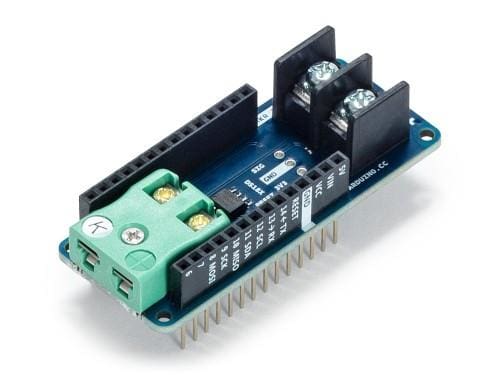

The two connectors of the MKR THERM Shield allow the usage of Type K thermocouples with or without a plug attached to the metal wires.

  • Connectors: K-Type, Screw Terminal and DALLAS DS18S20 (requires soldering)
  • Input Voltage: 3.3V
  • Operating Voltage: 3.3V
  • Operating Temperature: -200 C to +700C
  • Communication: SPI/1Wire
  • IC: MAX31855
  • Dimensions: 61mm x 25mm
