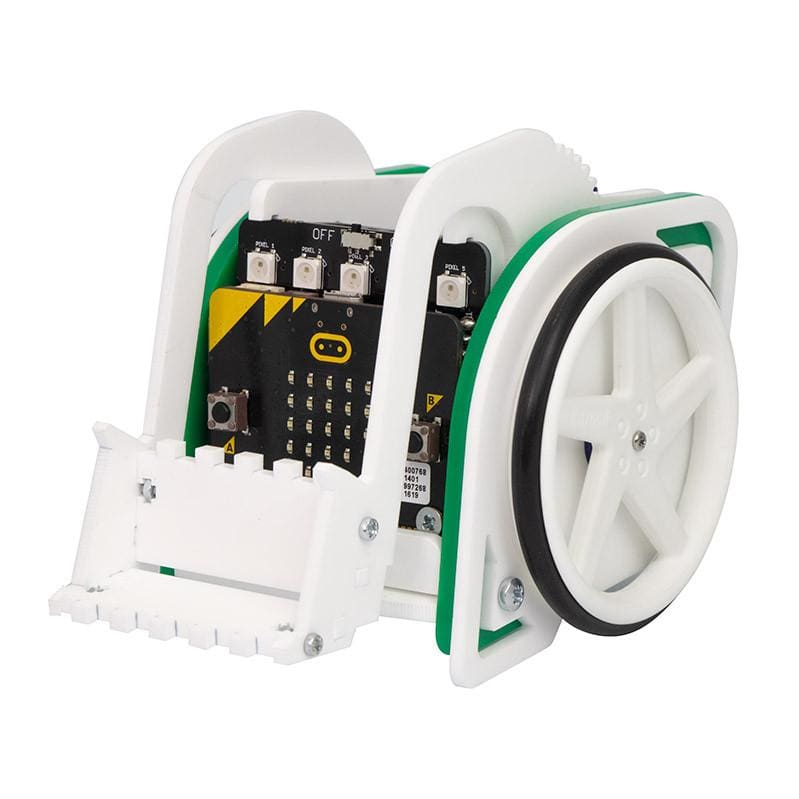

Bulldozer Add-On For The :MOVE MINI

DESCRIPTION

With this, the latest version of our Bulldozer add-on for :MOVE mini MK2 for the BBC microbit, everyone's favourite little programmable robot buggy just got much better. Robots often do more than just :MOVE from A to B, and with this add-on so can :MOVE mini.

Although this add-on has been designed to work with :MOVE mini MK2 it can also be fitted to the original :MOVE mini. We have produced two sets of build instructions as there is a slightly different procedure for each. The MK1 and MK2 build instructions can both be found in the resources section below.

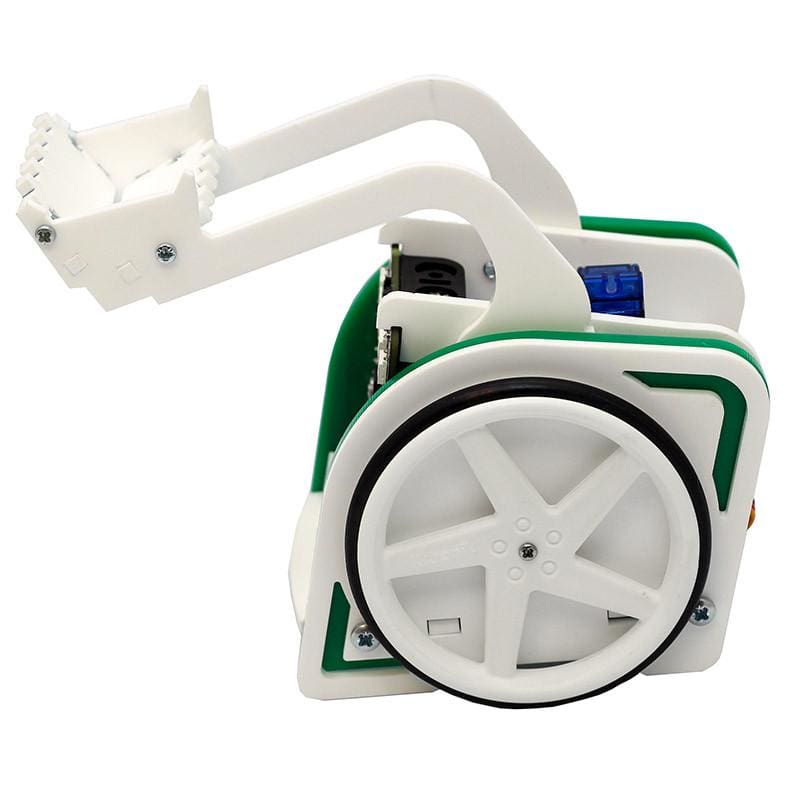

Previously on :MOVE mini, we; drew shapes, controlled it via Bluetooth, controlled it with a second microbit, and we also coded a variety of light shows. Now, it can totally lift and carry stuff too!

This self-assembly bulldozer add-on kit is made from the same materials as :MOVE mini MK2, designed in keeping with the :MOVE mini aesthetic, and also comes with the servo required to move the bulldozer add-on up and down.

Please Note:

• This kit requires mechanical assembly.
• This kit requires some soldering.

FEATURES

• When attached to :MOVE mini this kit offers a fun introduction to the world of DIY robotics.
• Code it with the Microsoft MakeCode Editor.
• Use in conjunction with an App and control it over Bluetooth.
• Use the radio function and a second microbit as a controller.

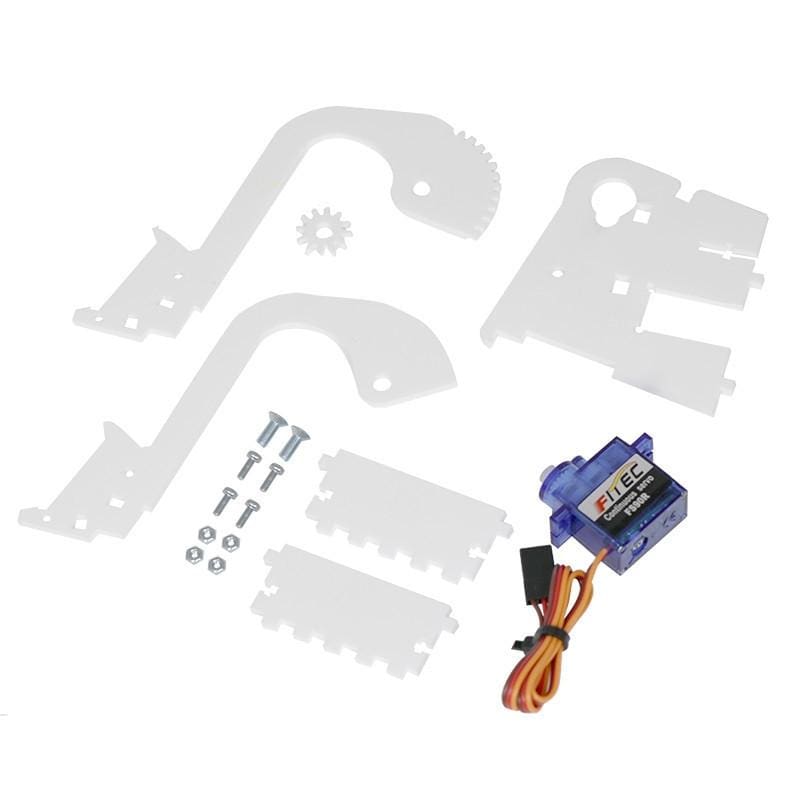

Contents:

• 1 x Set of Buldozer parts.
• 1 x Continous rotation tervo.
• 4 x M2 6mm Pan head steel screw.
• 4 x M2 Hex Full-width nut.
• 2 x Counter sunk M3 screw.

Dimensions:

• Length: 110mm.
• Width: 50mm.
• Height: 75mm.

Requires:

• 1 x :MOVE mini for the BBC microbit kit.
• 1 x BBC microbit.
• Screwdriver.

RESOURCES

• Bulldozer Build Instructions for MK1 :MOVE mini.
• Bulldozer Build Instructions for MK2 :MOVE mini.
• Servo:Lite board Datasheet.

• Example code and usage instructions.
• Guide For Kitronik Custom MakeCode Editor Servo Blocks.
• Getting Started With The Servo:Lite board.
• Guide For Controlling 3 Servos With The Servo:Lite board.
• Guide for Controlling :MOVE mini With The microbit Radio.
• Guide For Adding Bluetooth Remote Control To :MOVE mini.
• WS2812B Datasheet.
