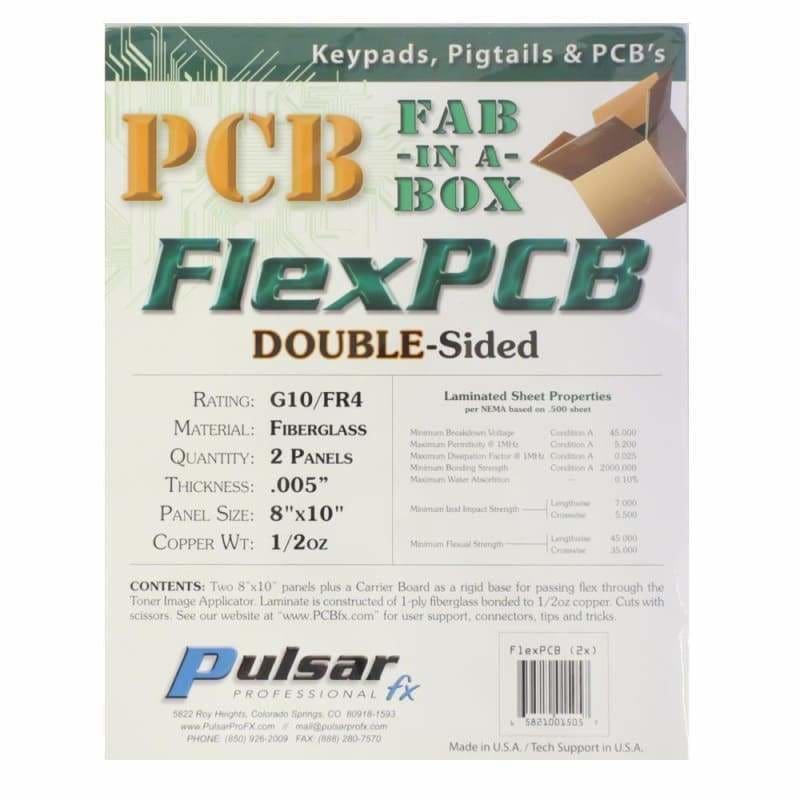

FlexPCB Double Sided

DESCRIPTION

This is a 2-panel pack of flexible double sided copper / fibreglass flexible PCB substrate. Each panel measures 8 x 10 inches and is designed to be used with the Pulsar ProFX 'Fab-in-a-box' system, although it can be used normally as well.

Because the substrate is flexible, you can create all manner of bendy PCBs.

This substrate can only be bent by a certain amount, and will snap if you try to do a sharp crease. There are ways around this, details in the full description of the product on the manufacturer's website (link below)

The laminate uses 1/2oz copper and is suitable for SMD components.

FEATURES

• G10/FR4 spec
• Fibreglass material
• 2 panels in each pack
• Thickness : 0.005 inches
• Size : 8x10 inches
• Copper Weight : 1/2oz
• 'Carrier Board' included
• Cuts with scissors
• Lamination Properties (per NEMA based on .500 sheet)
  • Minimum Breakdown Voltage : Condition A : 45.000
  • Maximum Permitivity @ 1Mhz : Condition A : 5.200
  • Maximum Dissipation Factor @ 1Mhz : Condition A : 0.025
  • Minimum Bonding Strengh : Condition A : 2000.000
  • Maximum Water Absorbtion : 0.10%
  • Minimum Izod Impact Strength : Lengthwise = 7.000, Crosswise = 5.500
  • Minimum Flextual Strength : Lengthwise = 45.000, Crosswise = 35.000

RESOURCES

• Manufacturer's Information Page
