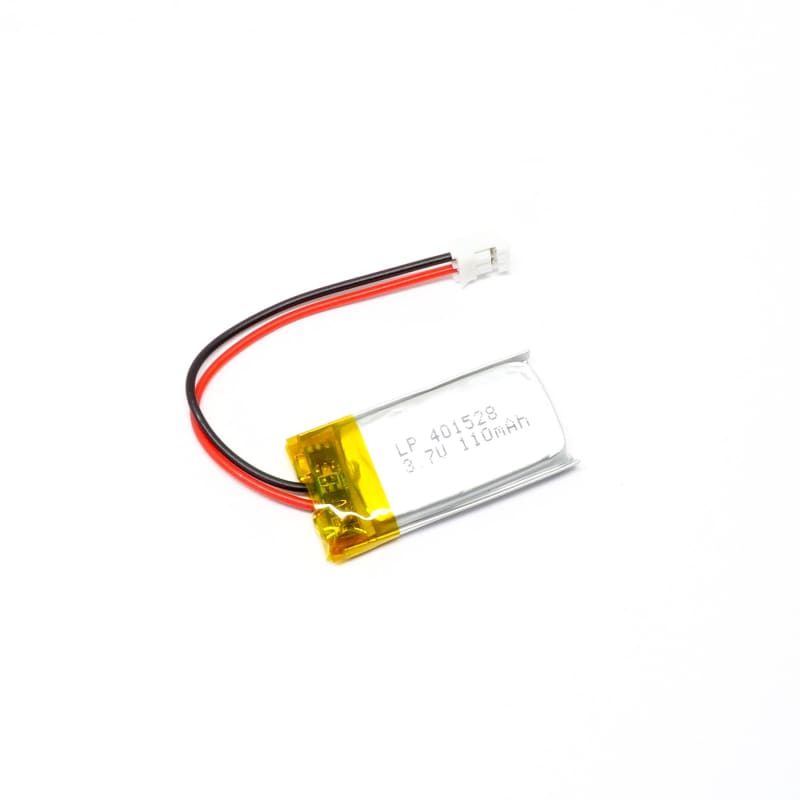

Lithium Polymer Battery - 110mAh

DESCRIPTION

This is a very small, extremely lightweight battery based on the new Polymer Lithium Ion chemistry. This is the highest energy density currently in production. Each cell outputs a nominal 3.7V at 110mAh! Comes terminated with a standard 2-pin JST-PH connector - 2mm spacing between pins. These batteries require special charging. Do not attempt to charge these with anything but a specialised LiPo charger.

Battery includes built-in protection against over voltage, over current, and minimum voltage.

Please Note:

• Be careful with the JST connectors they can stick in pretty good and tugging on them can damage the connector.
• Check this tutorial for an easy way to remove them safely.

FEATURES

• Dimensions: 16 x 29.5 x 4.6 mm - measurements can vary slightly, usually by +-1mm
• Weight: 3.8g
• Capacity: 110mAh
• Max Continuous Discharge Current: 220mAm (2C)
• Robust power source under extreme conditions (-20 to 35C)

RESOURCES

• Datasheet
• JST connector
