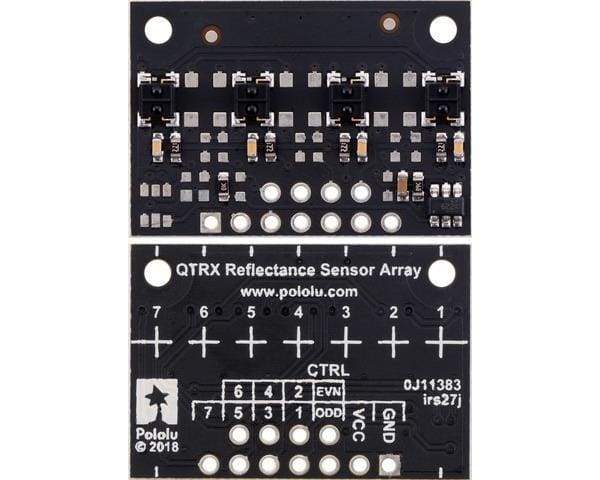

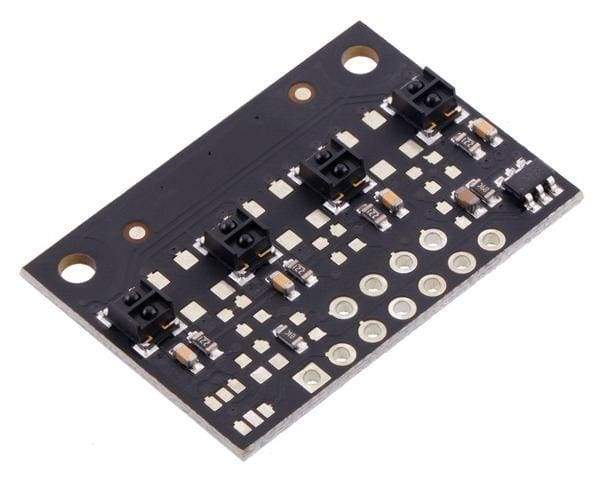

QTRX-MD-04RC Reflectance Sensor Array: 4-Channel, 8mm Pitch, RC Output, Low Current

by Pololu
SKU 2847
Save 36%
Original Price £4.99 inc VAT
Current Price £3.17 inc VAT
£2.64 ex VAT
6 in stock.

This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9V to 5.5V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30mm.

These reflectance sensors feature a linear array of IR emitter/phototransistor pair modules in a high-density (4mm pitch) or medium-density (8mm pitch) arrangement, which makes them well suited for applications that require the detection of changes in reflectivity. This change in reflectivity can be due to a colour change at a fixed distance, such as when sensing a black line on a white background, as well as due to a change in the distance to or presence of an object in front of the sensor. A variety of sensor counts and densities is available so you can pick the ideal arrangement for your application. Since the outputs are all independent, you can connect just some of the channels to attain an irregular or non-standard sensor spacing.

These units have integrated LED drivers that provide brightness control independent of the supply voltage, which can be anywhere from 2.9V to 5.5V, while enabling optional dimming to any of 32 possible brightness settings. For high-density (HD) modules with five or more sensors, there are separate controls for the odd-numbered and even-numbered LEDs, which gives you extra options for detecting light reflected at various angles.

Please Note:

  • This QTRX version features higher-performance sensor modules with lenses, which allow high performance at a much lower IR LED current.
  • Dimensions: 29mm × 20.0mm × 3.0mm
  • Operating voltage: 2.9V to 5.5V
  • Sensor type: QTRX
  • Sensor count: 4
  • Sensor pitch: 8mm
  • Full-brightness LED current: 3.5mA (independent of supply voltage)
  • Output type: RC (measurable by digital I/O)
  • Optimal sensing distance: 10mm
  • Maximum recommended sensing distance: 40mm
  • Weight: 1.5g
