RFID Evaluation Shield - 13.56MHz (DEV-10406)

SparkFun  |  SKU: 680
£9.59 £12.32
Tax included, shipping and discounts calculated at checkout.


DESCRIPTION

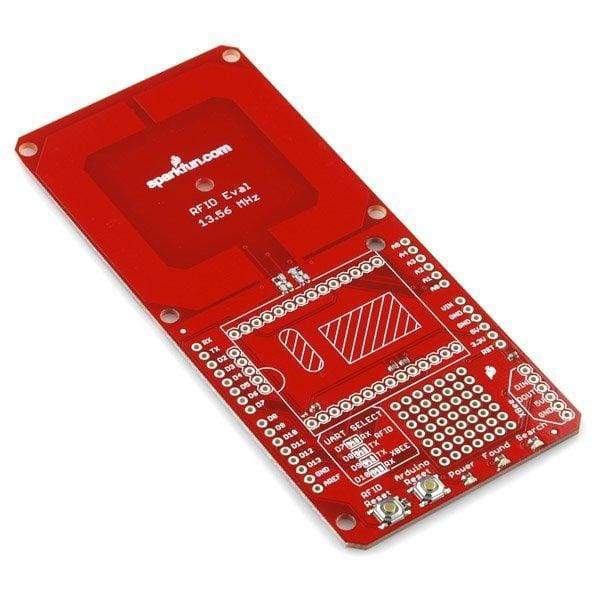

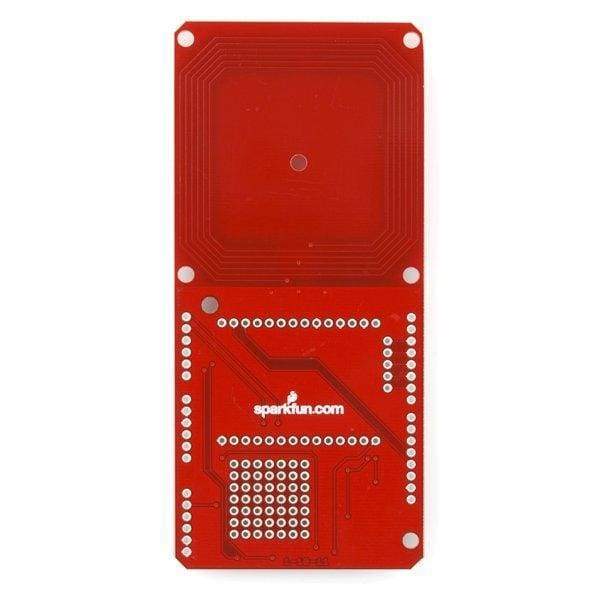

This board is an evaluation platform for the SM130 RFID module. It includes an XBee header, and PCB trace antenna, and has the layout to be used as a shield for an Arduino. There is a small prototyping area as well. This board can also be used as an antenna for the SM130 RFID module. Be sure to check the schematic for information on the connections.

This board comes populated with the switches, resistors and LEDs, but does not include the RFID module, XBee or Arduino board.

Please Note:

  • This board does not come with any stackable headers, 6 and 8-pin headers are needed to connect to an Arduino.
  • The centre strips are 14 pins long and you can solder on a 6 and 8-pin stackable header to make a 14-pin strip to receive the RFID module.
  • The XBee header is designed to be used with the XBee Explorer Regulated board.
