Seeed IoT Button for AWS - Cloud Programmable Dash Button

DESCRIPTION

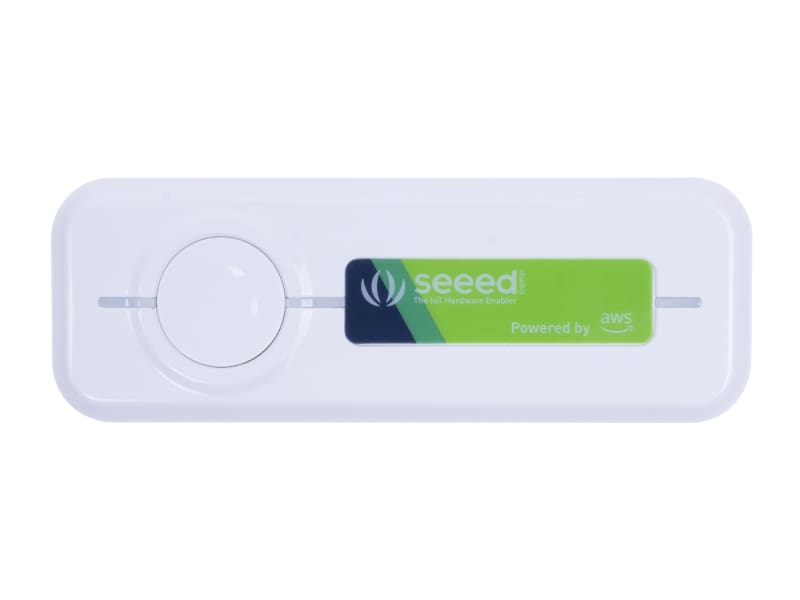

The Seeed IoT Button For AWS is a Wi-Fi-based, programmable button that is easy to configure and simple to use. You can use the Seeed IoT Button For AWS to capture quick customer feedback without burdening customers with time-consuming questionnaires. It is designed for enterprises and developers to easily integrate with existing business workflows and systems using the AWS IoT 1-Click service.

This IoT Button is fully compatible with the official AWS IoT 1-Click iOS app and Android app. There is a stickable bracket for this IoT Button. Customers can stick it on the wall or other surfaces and easily put the IoT Button in and get out from the bracket. The Seeed IoT Button for AWS supports three types of clicks: single, double, and long press, and 3 LEDs for different indications.

FEATURES

• Single/Double/Long Press Click Events
• Onboard Power/Event/Wi-Fi Configuration Status LED
• Equipped with Realtek RTL8720DN, dual-band 2.4Ghz / 5Ghz Wi-Fi
• Battery polarity reversed protection and indication

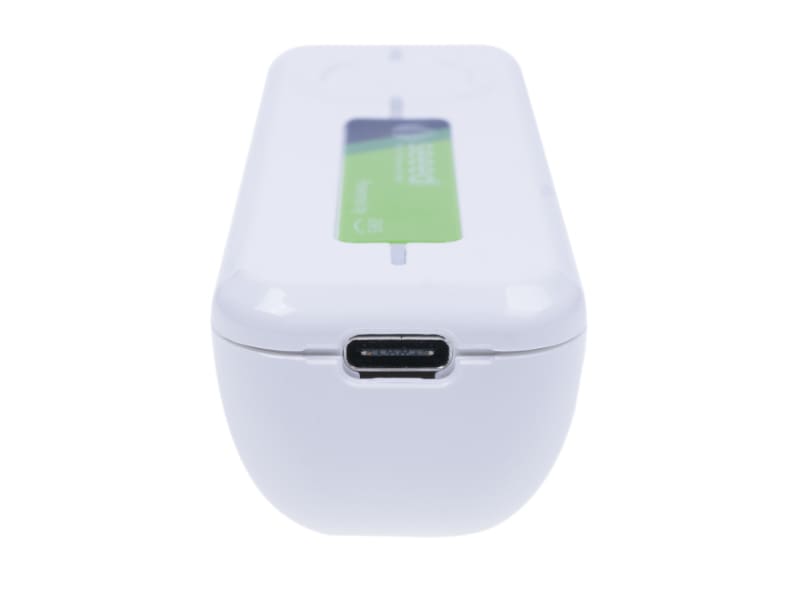

• USB Type-C Charging
• Stickable Bracket

Specifications

• Dimensions: 92*32*25mm
• MCU: Realtek, RTL8720DN: 20MHz Cortex M0; 200MHz Cortex M4F
• Flash: 4MB
• LED: RGB
• WiFi: 802.11 a/b/g/n 2.4GHz & 5GHz
• Bluetooth: BLE 5.0
• Charging Interface: USB Type-C
• Charging Time: 4-6Hours
• Battery Protection: Overcharge, Overcurrent, Over-discharge, and Reverse polarity protection

RESOURCES

• Wiki Page
• AWS IoT 1-Click Service
