Shadow Chassis Modular Robot Platform (ROB-13301)

SparkFun  |  SKU: 1716
£14.83
Tax included, shipping and discounts calculated at checkout.


DESCRIPTION

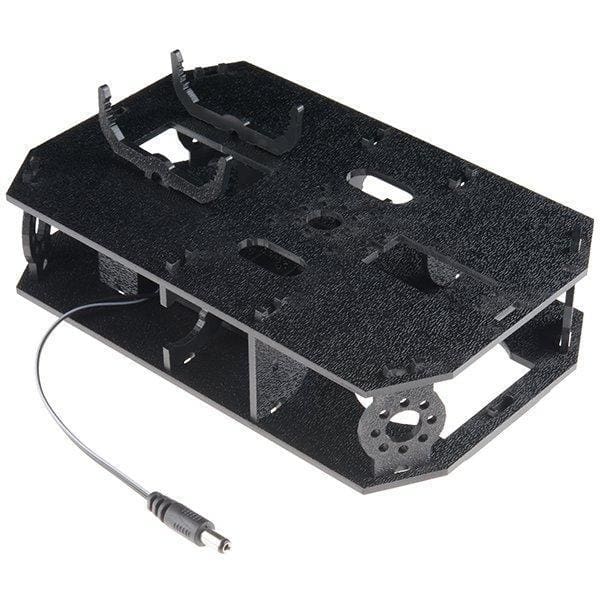

The Shadow Chassis is a marvellously durable and modular robot platform. The chassis plates and mounts are cut from ABS plastic and utilise the Actobotics 0.77" and 1.50" hub patterns for sensors, controllers and power. Simply snap each panel together and you will be able to attach your motors and favourite robotics controller.

With the included snap-on micro-controller mounts, you can attach an Arduino, Raspberry Pi, RedBoard, or RedBot Mainboard! This kit even has a mounting hole for a standard-size servo as well as a 4xAA battery holder with barrel jack termination. The Shadow Chassis does not require you to use any additional tools. Everything snaps soundly into place!

Note: The Shadow Chassis does require assembly. You can find detailed instructions in the Resources section.

FEATURES

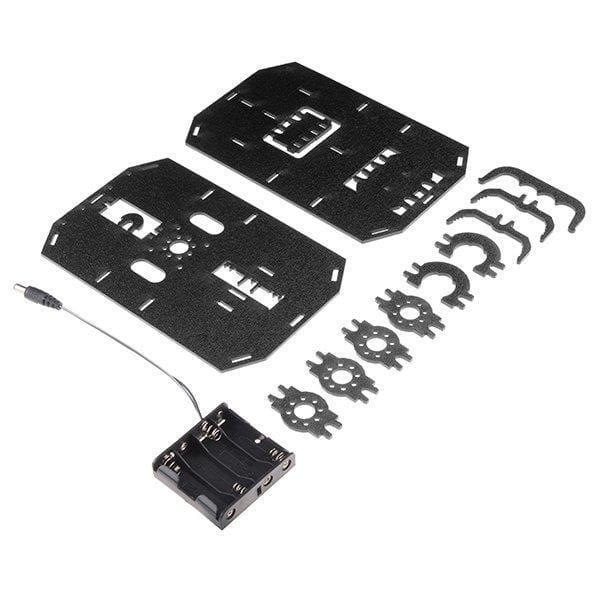

Kit Includes:

  • 1x Top Chassis Plate
  • 1x Bottom Chassis Plate
  • 2x Front Motor Mount
  • 2x Rear Motor Mount
  • 4x Side Strut
  • 2x Encoder Mount
  • 2x Micro-Controller Mount
  • 1x Battery Pack Clip
  • 1x Line Follower Mount
  • 1x Line Follower Mount Plate
  • 1x Nub Caster
  • 1x 4xAA Battery Holder

Dimensions: 196mm L x 126mm W x 44mm H (53.25mm w/ Nub Caster)
