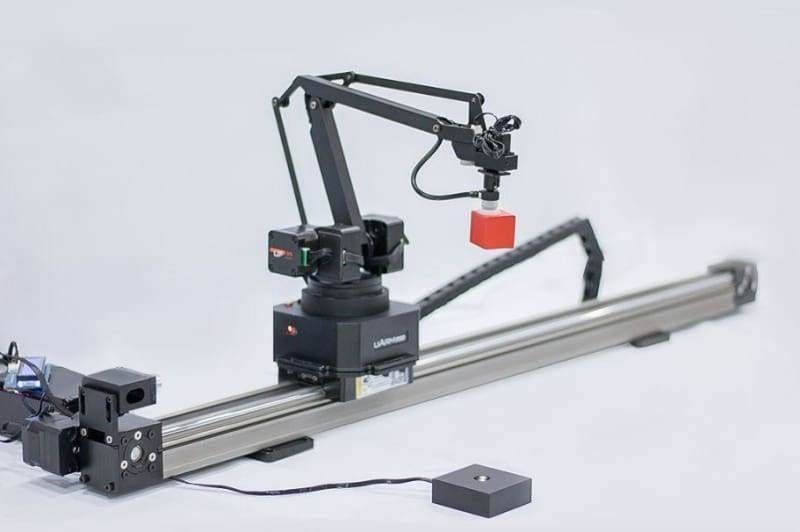

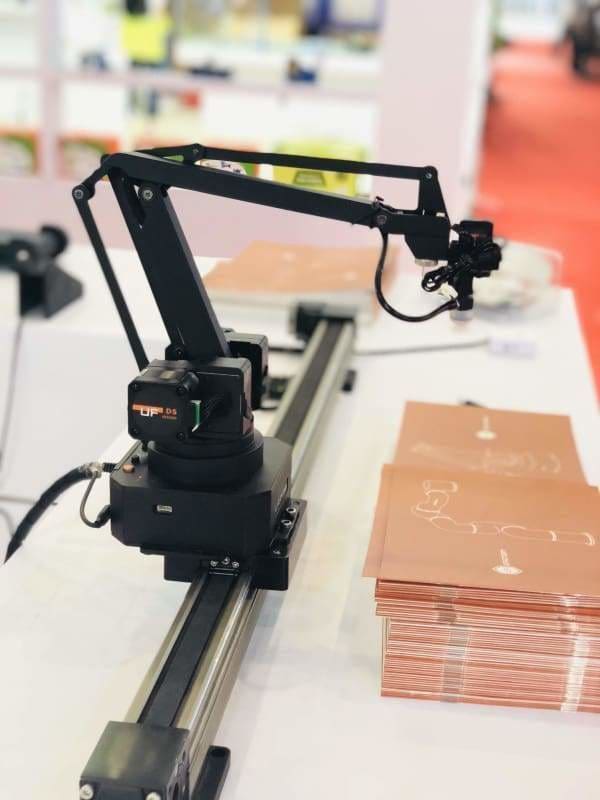

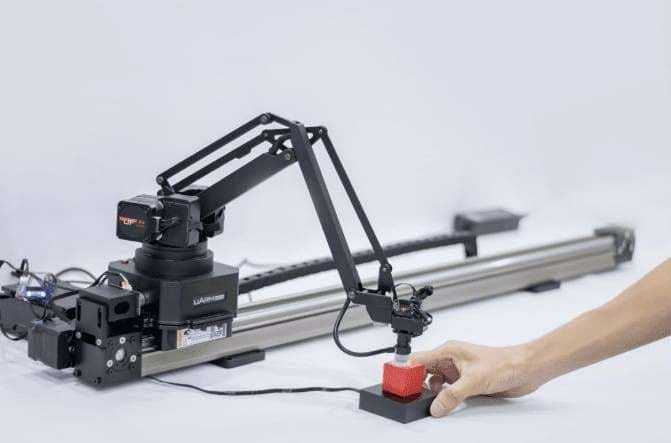

Slide Rail Project Kit (for uArm Swift Pro)

Product Code: 2920
by uFactory
£944.99 inc VAT
£787.49 ex VAT
Sorry, this product is out of stock.

More available in 7-14 days.
Available for backorder (more info)

Unlock the full potential of the uArm Swift Pro with this Slide Rail Bundle! It has everything included you'll need to fully extend the working range of the robotic arm. With an Arduino Mega as the main control board, a colour sensor and an ultrasonic distance sensor.  It has everything to allow you to accurately increase the range and perform a range of other functions.

  • High precision rail allows for smooth operation and easy installation
  • The combination of a uArm and this slide rail provides endless more uses for the robotic arm and enhances functions such as pick & place, 3D printing and even drawing.
  • Complete instructions on how to setup/use as well as example code to start with

Please Note: This bundle does not include a uArm Swift Pro, these can be purchased separately.

  • Working range: 470mm
  • Repeatability: 0.1mm
  • Payload: 4kg
  • Max Speed: 100mm/s
  • Input Voltage: 12V DC
  • Working Temp: 0-40 C
  • Rated Power: 5W
  • Connector: USB Type B

Hardware

  • Drive Mode: Customised Gearbox + Stepper
  • Mainboard: Arduino Mega 2560
  • No. of uArms supported: 1
  • Dimensions: 756x291x87mm (LxWxH)

Parts List

  • 1 x Slide Rail
  • 3 x Coloured Blocks (1 x Green, Red, and Yellow)
  • 1 x LCD Screen
  • 1 x USB Type C Line & uArm 3-P Bottom Expansion Plate
  • 1 x Colour Sensor
  • 1 x Ultrasonic Sensor
  • 1 x Control Board
  • 1 x Hidden Trough
  • 1 x Power Adaptor
