A LiPo battery and charger board that charges automatically while you use your micro:bit! This neat solution to your micro:bit’s power needs comes with an acrylic layer enclosure to protect your micro:bit and the Charger for micro:bit.

Using the Charger

The Charger for micro:bit contains a rechargeable battery, that will automatically charge whenever the device is plugged into a USB power source such as your computer. You can also flash programs onto your micro:bit through this connection. There is no need to take anything apart.

When the charger is fully charged (which should take about 3 hours from empty) a green LED on the charger will light. Note that you don’t have to fully charge the Charger before using it.

If you want to power the micro:bit from the Charger’s battery, then just unplug the USB lead to your computer and slide the switch on the Charger to the right (1-position).

When you have finished using your micro:bit on the battery, then either plug it back into a USB power source to get it charging again or turn the switch to off (0) to save the battery.

A fully charged Charger for micro:bit will power the micro:bit on its own for about 24 hours.

RESOURCES

Assembly Instructions

Step 1. Check the Contents

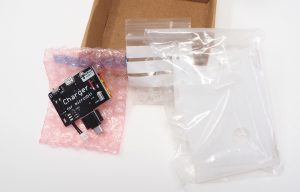

Take the parts out of the box (contained in three bags) and check that you have everything.

Charger Kit for micro:bit

You should have the following items:

  • Acrylic pieces labelled 1 to 6
  • Charger for micro:bit board with USB adapter fitted
  • 4 x plastic nuts and bolts

Step 2. Put the Bolts Through the Base

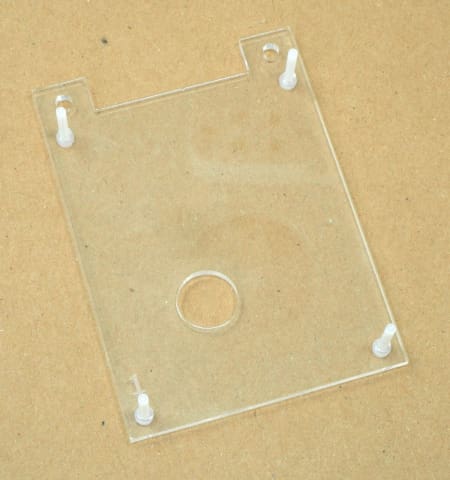

Push the bolts through the back of the piece labelled 1. It's difficult to do this without bolts falling out as fast as you put them in. If you do it near the edge of your table, you can slide one corner of piece 1 over the edge of the desk at a time and push its bolt through.

Make sure that the piece is the right way around, with the engraved number 1 in the bottom left.

Charger Kit for micro:bit

Step 3. Assemble the Layers

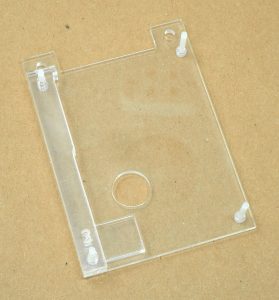

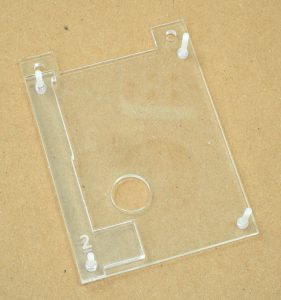

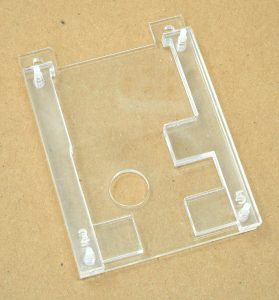

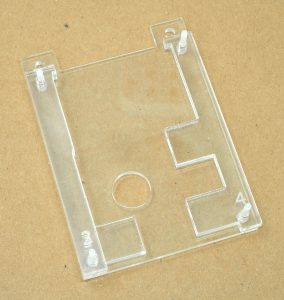

Place the acrylic pieces over the bolts as shown in the sequence below. You can tell that it is the right way around from the photo, and also by checking that the numbers engraved on the plastic are the correct way up.

Charger Kit for micro:bit Charger Kit for micro:bit
Charger Kit for micro:bit Charger Kit for micro:bit

Step 4. Connect USB

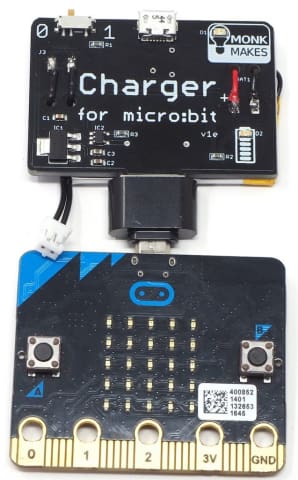

Connect your BBC micro:bit to the Charger for micro:bit’s USB plug.

If the USB plug won’t fit into the micro:bit’s USB socket make sure that the black USB adaptor hasn’t been put onto the Charger for micro:bit the wrong way around.

Charger Kit for micro:bit

Step 5. Connect the JST Battery Connector

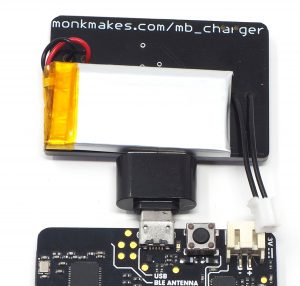

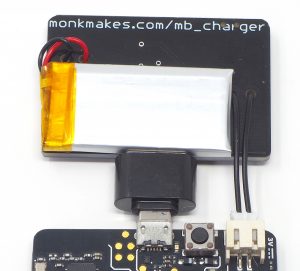

Flip the micro:bit and Charger over and plug the JST plug coming from the lead on the Charger for micro:bit into the JST ‘battery’ socket on the micro:bit.  This will only connect one way around.

Charger Kit for micro:bit Charger Kit for micro:bit

Step 6. Fit the micro:bit and Charger into Position

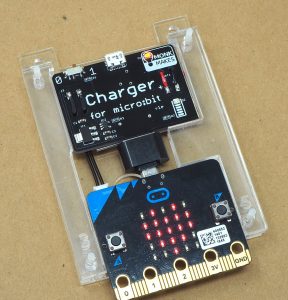

Place the connected micro:bit and Charger for micro:bit onto the acrylic assembly as shown below.

Charger Kit for micro:bit

Step 7. Put on the Top Layer of Acrylic

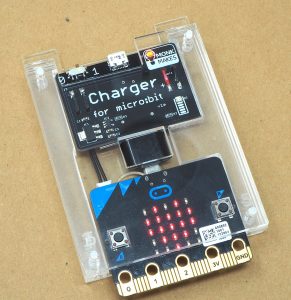

Put the acrylic layer labelled 6 into place, with the square cut-outs over buttons A and B

Charger Kit for micro:bit

Step 8. Fit the Nuts

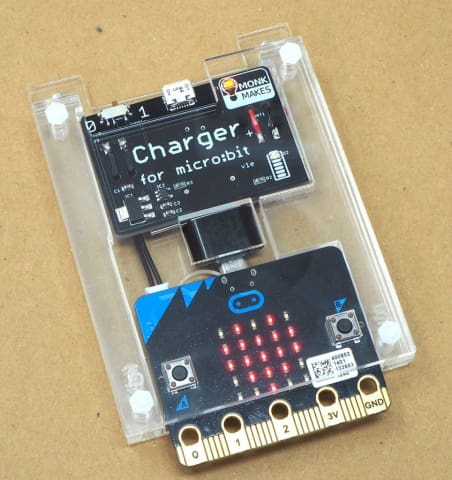

Place the nuts over the top of the screws and tighten them (finger tight).

Charger Kit for micro:bit

You can use a small screwdriver to hold the screws still while you tighten the nuts with your fingers.
