Material Sorting Project Kit with Conveyor Belt (for uArm Swift Pro)

SKU 2919
Save 22%
Original Price £944.99 inc VAT
Current Price £736.01 inc VAT
£613.34 ex VAT
1 in stock.

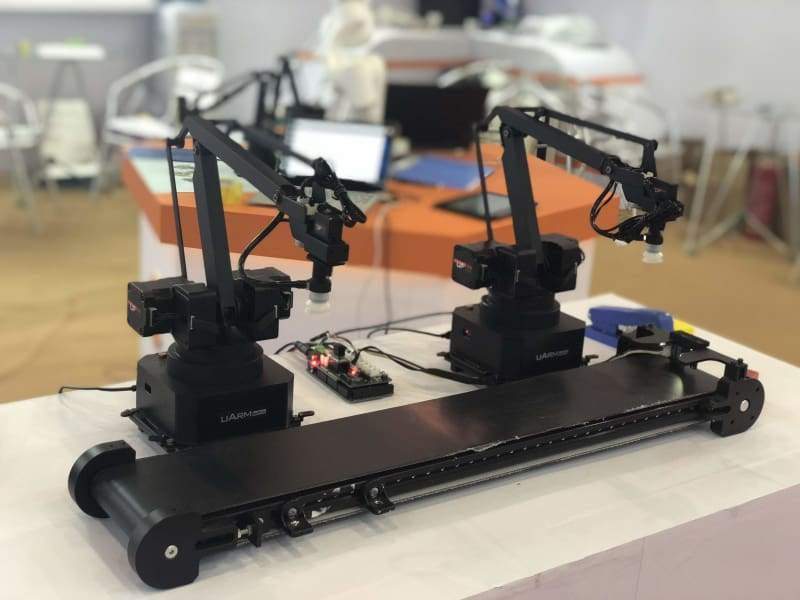

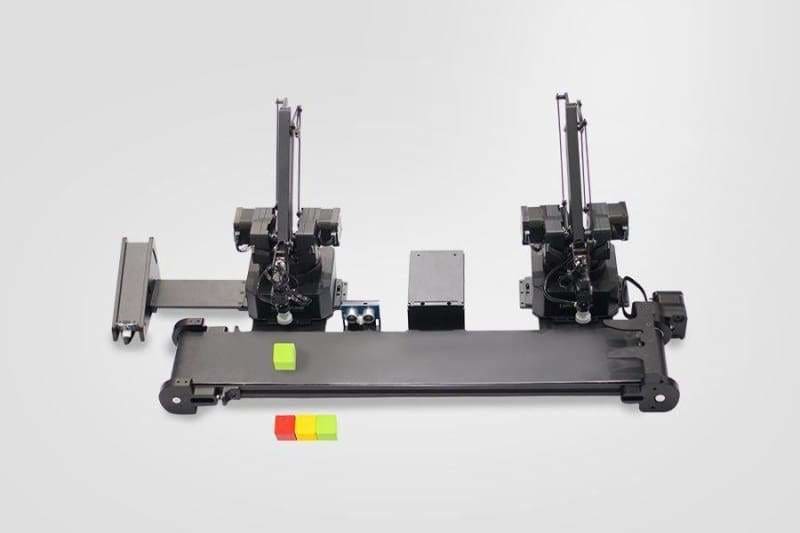

Unlock the full potential of the uArm Swift Pro with this Conveyor Belt Bundle! It has everything you need to create a material sorting system. With an Arduino Mega as the main control board, a colour sensor, and a material loading slide you can create your own small-scale manufacturing line.

  • The conveyor belt is completely programmable, speed adjustable and stable
  • With this Conveyor Belt Bundle, you can simulate the material transmission of an industrial pipeline with ease.
  • Complete instructions on how to setup/use as well as example code to start with

Please Note:

  • This does not include a uArm Swift Pro, these can be purchased separately.
  • Working Range: 635mm
  • Max Speed: 10mm/s
  • Repeatability: 0.1mm
  • Payload: 500g
  • Input Voltage: 12V DC
  • Rated Power: 5W
  • Weight (uArms not included): 4.5Kg
  • Working Temp: 0-40 C

Hardware

  • Drive Mode: Customised Gearbox & Stepper Motor
  • Mainboard: Arduino Mega 2560
  • Dimensions: 719x269x98mm (LxWxH)

Parts List

  • 1 x Conveyor Belt with Colour Sensor
  • 2 x uArm 30P Bottom Expansion Plate
  • 1 x 12V Power Adapter
  • 2 x USB Type C Cable
  • 1 x uArm Power Cable
  • 3 x Target Object (1 x Green, Red, and Yellow)
  • 1 x Ultrasonic Sensor
  • 1 x LCD Display
  • 1 x Control Board (Arduino Mega 2560)
  • 1 x Material Slide
  • 1 x Line Finder
  • 1 x Connection Plate
  • 2 x uArm Swift Pro Stator
