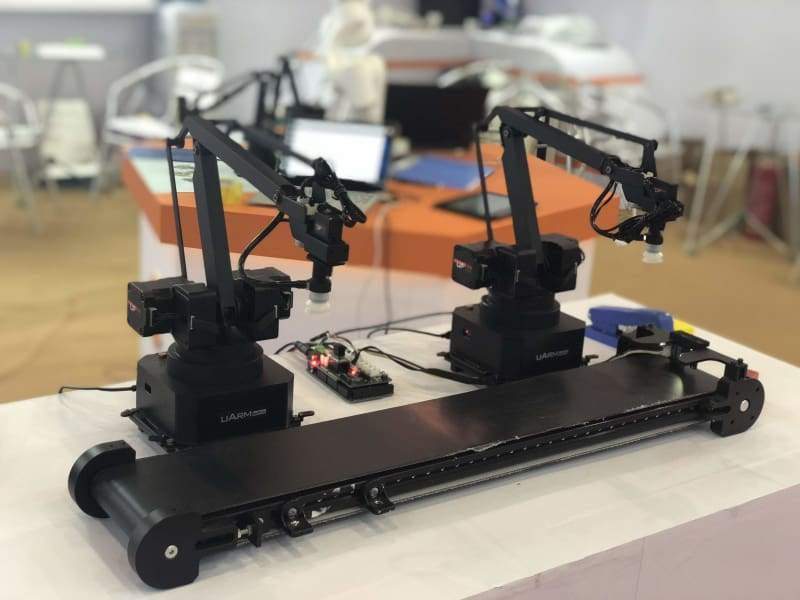

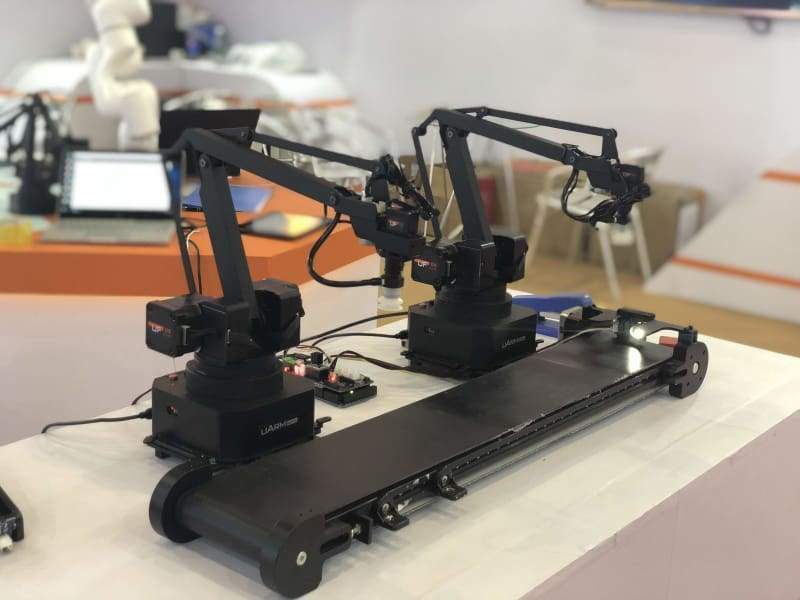

Material Sorting Project Kit with Conveyor Belt (for uArm Swift Pro)

DESCRIPTION

Unlock the full potential of the uArm Swift Pro with this Conveyor Belt Bundle! It has everything you need to create a material sorting system. With an Arduino Mega as the main control board, a colour sensor, and a material loading slide you can create your own small-scale manufacturing line.

• The conveyor belt is completely programmable, speed adjustable and stable
• With this Conveyor Belt Bundle, you can simulate the material transmission of an industrial pipeline with ease.
• Complete instructions on how to setup/use as well as example code to start with

Please Note:

• This does not include a uArm Swift Pro, these can be purchased separately.

FEATURES

• Working Range: 635mm
• Max Speed: 10mm/s
• Repeatability: 0.1mm
• Payload: 500g
• Input Voltage: 12V DC
• Rated Power: 5W
• Weight (uArms not included): 4.5Kg
• Working Temp: 0-40 C

Hardware

• Drive Mode: Customised Gearbox & Stepper Motor
• Mainboard: Arduino Mega 2560
• Dimensions: 719x269x98mm (LxWxH)

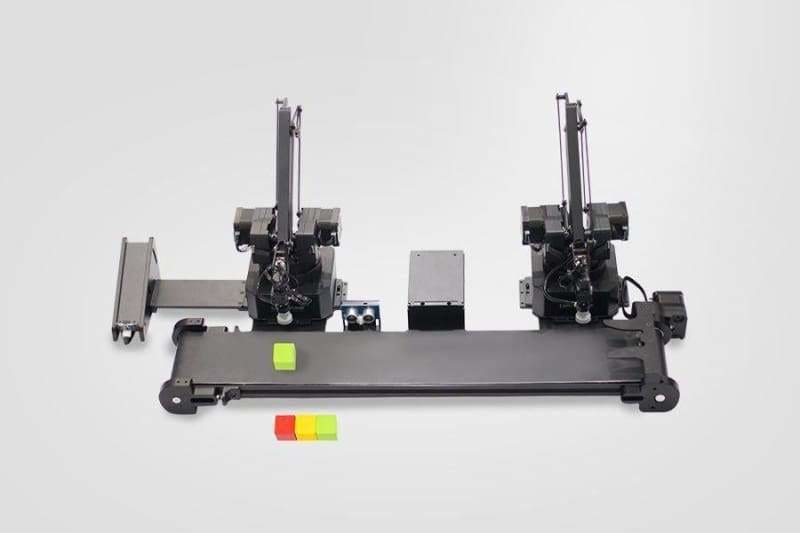

Parts List

• 1 x Conveyor Belt with Colour Sensor
• 2 x uArm 30P Bottom Expansion Plate
• 1 x 12V Power Adapter
• 2 x USB Type C Cable
• 1 x uArm Power Cable
• 3 x Target Object (1 x Green, Red, and Yellow)
• 1 x Ultrasonic Sensor
• 1 x LCD Display
• 1 x Control Board (Arduino Mega 2560)
• 1 x Material Slide
• 1 x Line Finder
• 1 x Connection Plate
• 2 x uArm Swift Pro Stator

RESOURCES

• Getting Started Guide
• Example Code
