12V Bias Voltage Boost Converter - TPS61040

Adafruit  |  SKU: 4554
£2.94
Tax included, shipping and discounts calculated at checkout.


DESCRIPTION

The Adafruit 12V Bias Voltage Boost Converter uses a popular mini-booster, the TI TPS61040, to generate a 12V DC from as little as 3V input. This chip is used in a ton in Adafruit OLED boards, to generate the 12V bias voltage needed for the displays to function. But there are probably many other times and reasons you may want a high-ish voltage, such as driving an LED string backlight or re-programming FLASH or EEPROM memories.

Note that this board isn't good for high-power driving, like solenoids or motors or long analog LED strips. You can get about 40mA out max. But easier than getting a separate 12V supply when just a small amount of current is needed and you've already got 3.3 or 5V on the board.

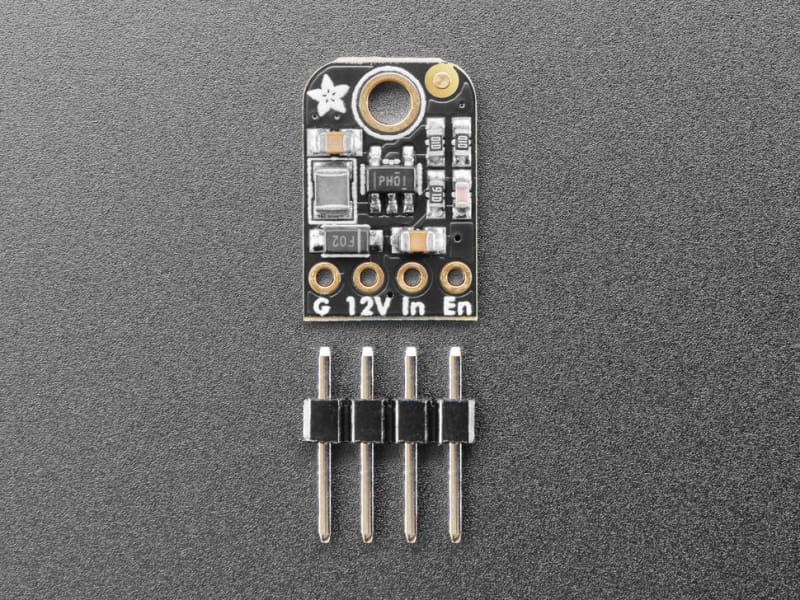

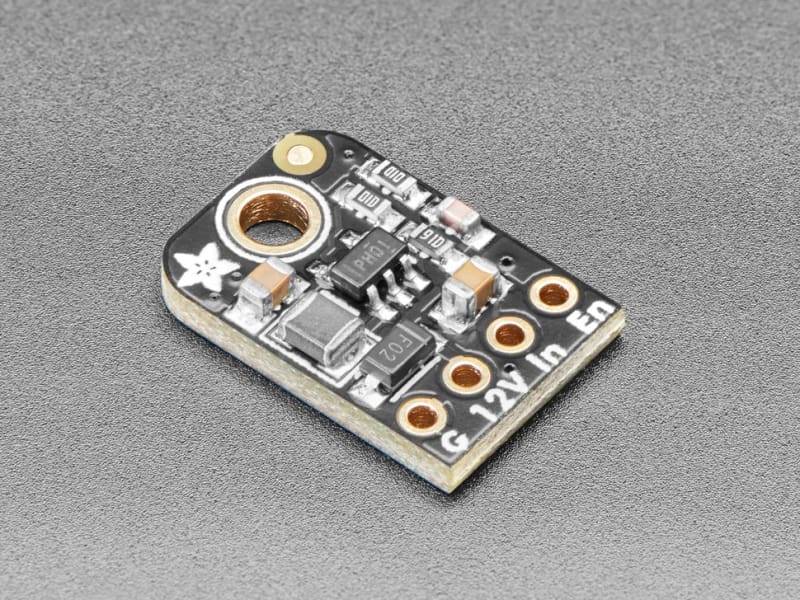

You get one fully assembled breakout with a TPS61040 and required passive components and a small bit of header. Give 2 to 6V DC on the IN and Ground pins. Then you'll have 12V on the 12V output pin. The Enable pin can be pulled low to disable the output.

FEATURES

TPS61040 Features:

  • 1.8-V to 6-V Input Voltage Range
  • Fixed Output Voltage 12V
  • 400-mA (TPS61040) Internal Switch Current - this is not the same as the output current which is 40mA to 80mA
  • Up to 1-MHz Switching Frequency
  • 28-μA Typical No-Load Quiescent Current
  • 1-μA Typical Shutdown Current
  • Internal Soft Start
RESOURCES
12V Bias Voltage Boost Converter - TPS61040
Adafruit

12V Bias Voltage Boost Converter - TPS61040

£2.94
DESCRIPTION

The Adafruit 12V Bias Voltage Boost Converter uses a popular mini-booster, the TI TPS61040, to generate a 12V DC from as little as 3V input. This chip is used in a ton in Adafruit OLED boards, to generate the 12V bias voltage needed for the displays to function. But there are probably many other times and reasons you may want a high-ish voltage, such as driving an LED string backlight or re-programming FLASH or EEPROM memories.

Note that this board isn't good for high-power driving, like solenoids or motors or long analog LED strips. You can get about 40mA out max. But easier than getting a separate 12V supply when just a small amount of current is needed and you've already got 3.3 or 5V on the board.

You get one fully assembled breakout with a TPS61040 and required passive components and a small bit of header. Give 2 to 6V DC on the IN and Ground pins. Then you'll have 12V on the 12V output pin. The Enable pin can be pulled low to disable the output.

FEATURES

TPS61040 Features:
