5V, 3.2A Step-Down Voltage Regulator D36V28F5

DESCRIPTION

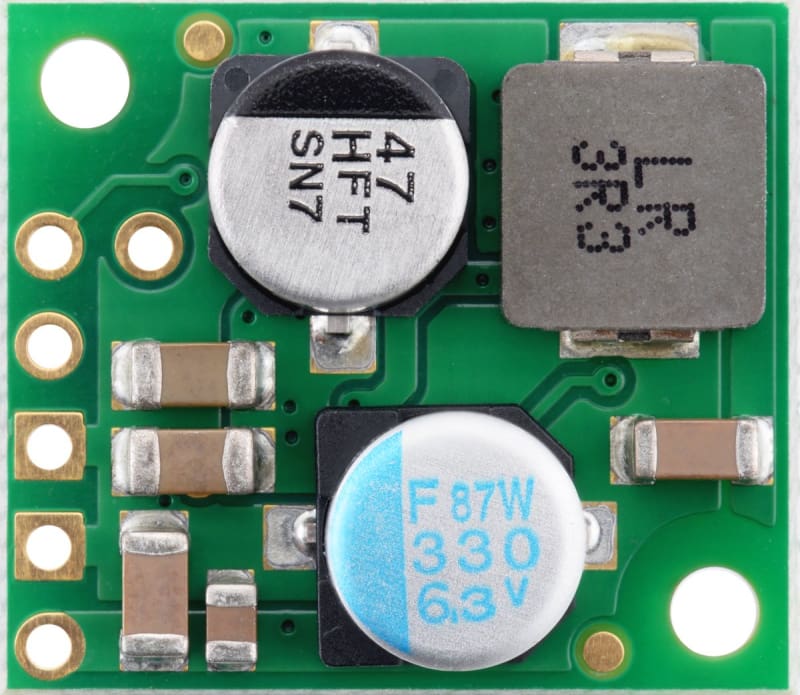

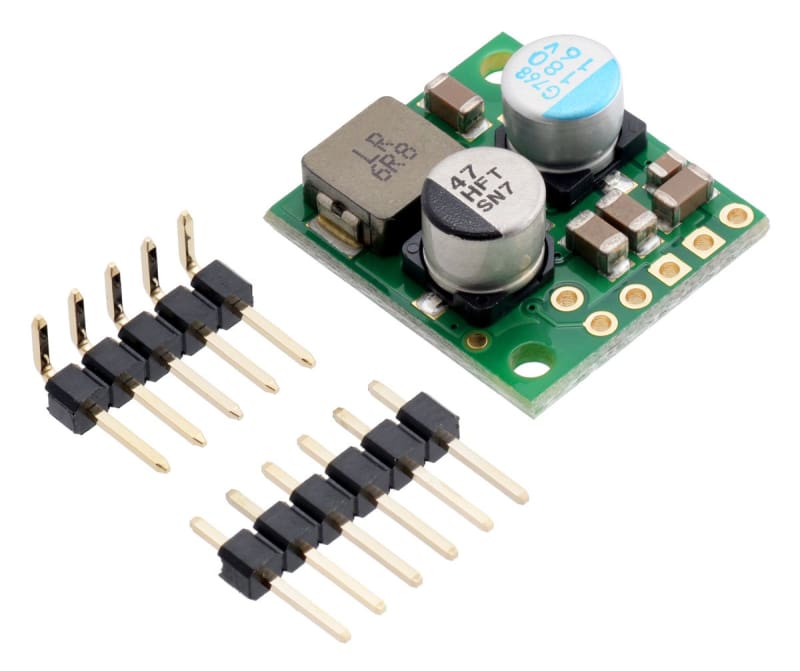

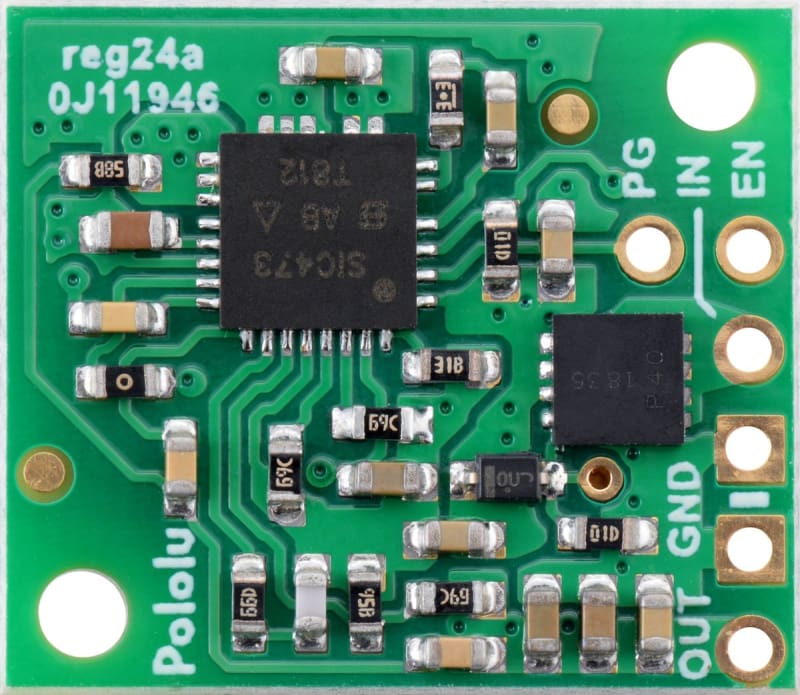

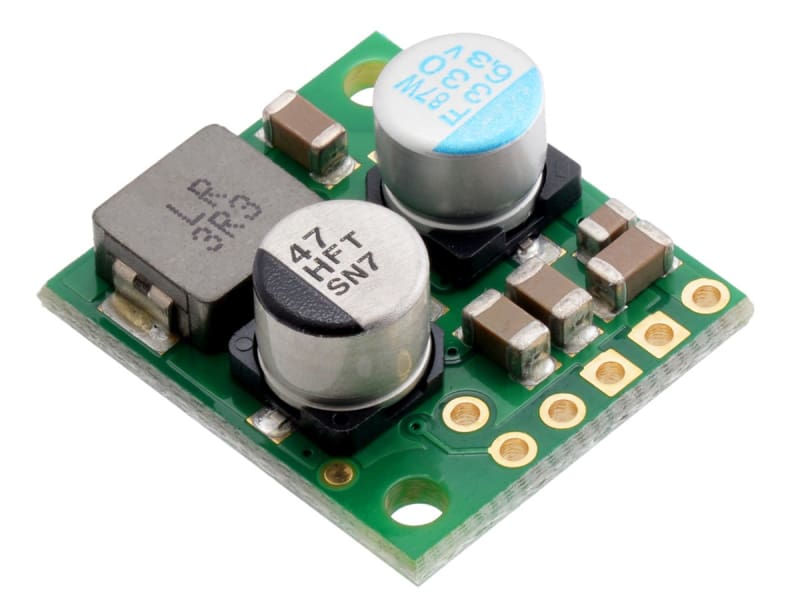

This small synchronous switching step-down (or buck) regulator takes an input voltage of up to 50 V and efficiently reduces it to 5V. The board measures only 0.7″ × 0.8″ yet delivers typical maximum continuous output currents between 2.5A and 4A, depending on the input voltage, which makes it well suited for powering moderate loads like sensors or small motors. An optional enable input can be used to put the regulator in a low-power state with a current draw of 10 µA to 20 µA per volt on VIN. The regulator also features reverse voltage protection and a power-good output that indicates when the regulator cannot adequately maintain the output voltage. The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

FEATURES

• Minimum Operating Voltage: 5.3V
• Maximum Operating Voltage: 50V
• Continuous Output Current: 3.2A
• Output Voltage: 5V
• Reverse Voltage Protection: Yes
• Maximum Quiescent Current: 3mA
• Output Type: Fixed 5V

RESOURCES

• Dimension diagram of the Step-Down Voltage Regulator D36V28Fx
• 3D model of the Step-Down Voltage Regulator D36V28Fx
• Drill guide for the Step-Down Voltage Regulator D36V28Fx
