Bumper Cage Kit for Balboa

DESCRIPTION

The bumper cage skids mount to the side of the Balboa chassis and can be arranged in a wide variety of positions, configurations, and orientations, enabling a wide variety of potential uses.

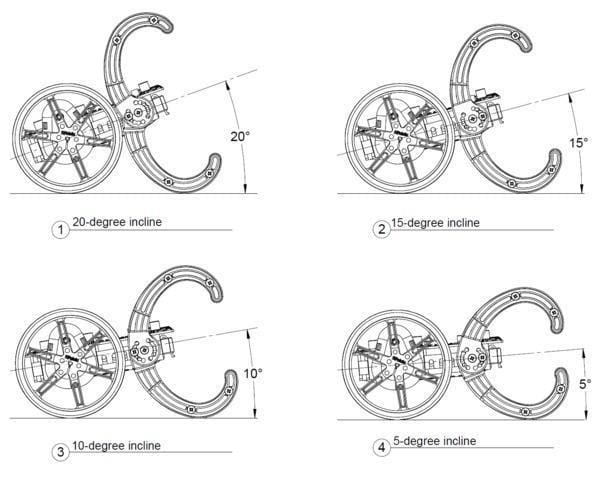

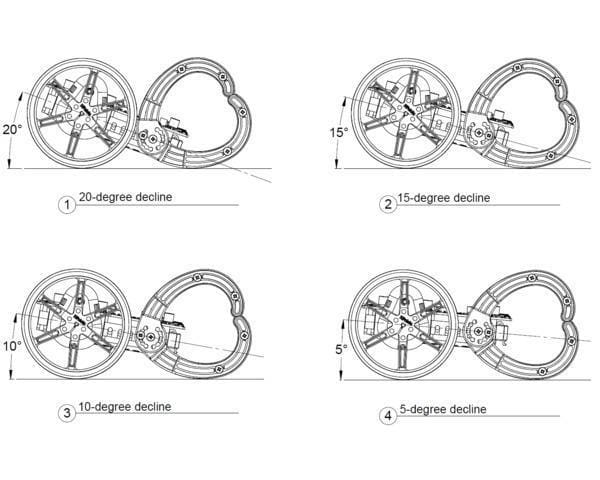

The primary purpose of the bumper kit is to absorb an impact before your electronics do, which is especially important for balancing applications, where hard falls can be a frequent occurrence. In addition to this, they can be positioned to prop your robot at just the right angle for it to be able to kick itself back up to a vertical position, or you can just use them as skids for your Balboa to drive around on.

The bumper cage skids and cross bars include a number of holes and slots sized to work with #4 and M3 screws, which gives you a lot of flexibility in how you can put them together and what you can mount to them

FEATURES

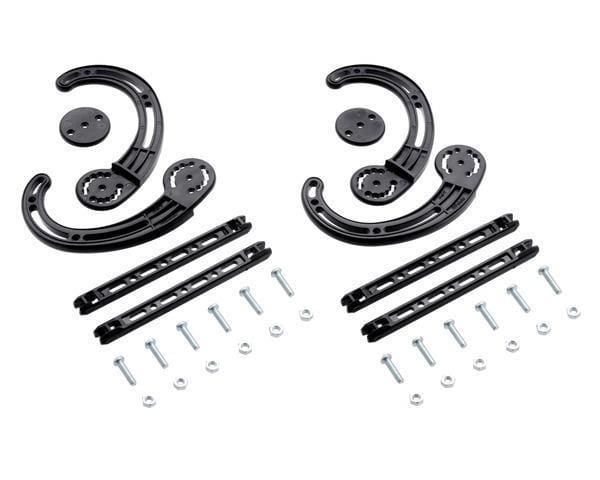

Kit contains:

• Four bumper skids
• Four bumper cage cross bars
• Two bumper skid spacers
• Twelve 12 mm M3 screws and nuts

RESOURCES

• Pololu Balboa 32U4 Balancing Robot User’s Guide
• Dimension diagram of the Bumper Cage Kit for Balboa 32U4 Balancing Robot

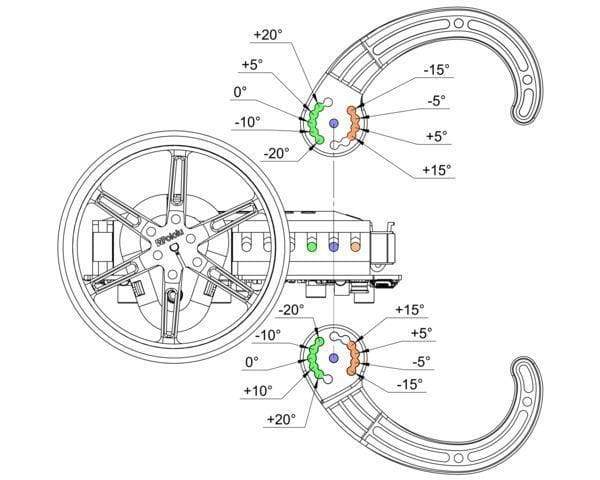

• Balboa Bumper Cage assembly reference diagram
