Grove - Circular LED

DESCRIPTION

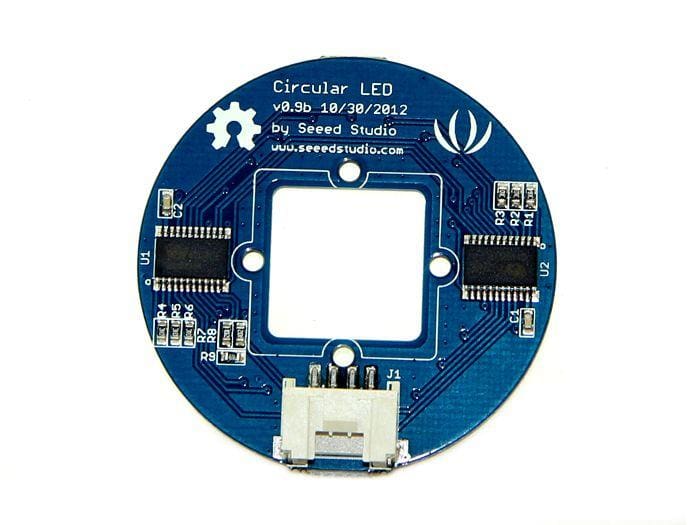

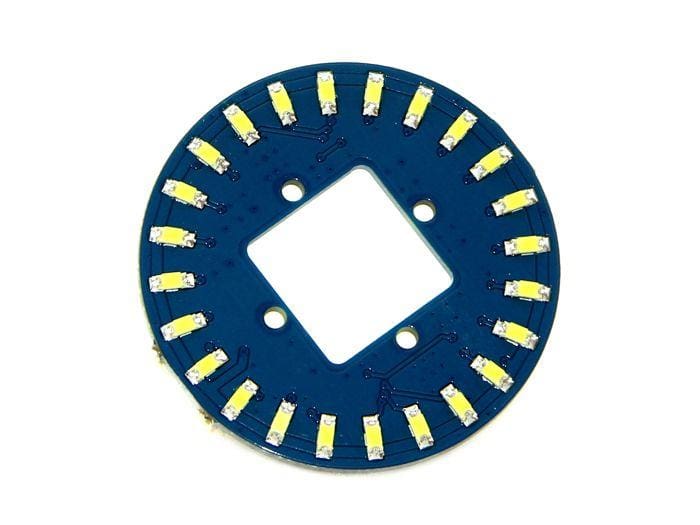

This is a unique ring - it has 24 controllable LEDs. Maybe it will drive the inspiration out of you to make a glowing magic ring! There is a 1*1 square hollow-out in the middle of this module, where you can place a Grove - Encoder to make it a rotary visual encoder!

FEATURES

• Circular shape
• 24 LEDs, about 5.5 mA drive current for each channel.
• Controllable LEDs with florid effects
• Grove Interface

Specification

• Voltage: 4.5V~5.5V
• Current: 5.5mA (for each LED)
• Dimensions: 90mm x120mm x7.5mm
• Diameter: 4.5cm
• Net Weight: 12g

RESOURCES

• Getting Started
• Introduction to Grove
• Wiki
• CircularLED Library
• Grove Circular LED schematics PDF File
• Grove-circular LED eagle files
• Codecraft CDC File
