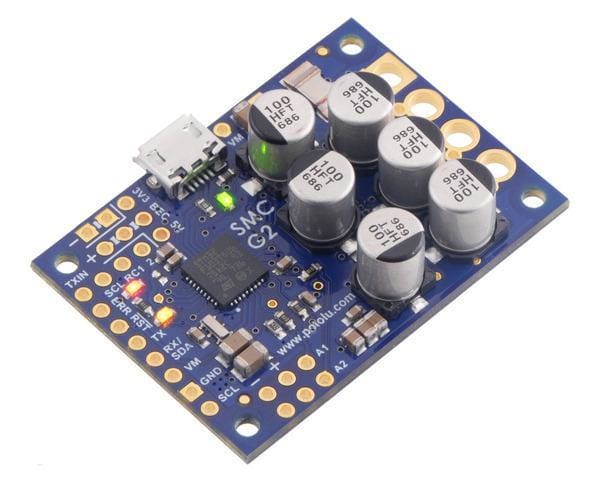

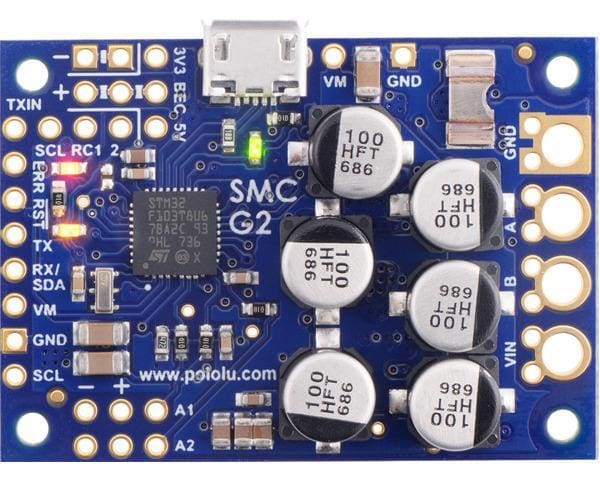

High-Power Simple Motor Controller G2 24v19

DESCRIPTION

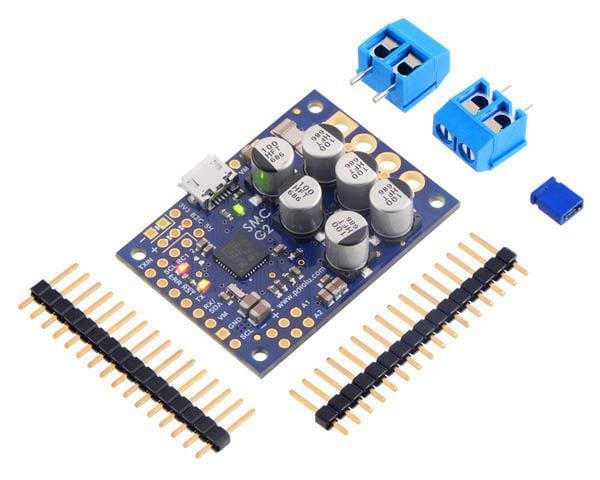

This powerful motor controller makes basic control of a brushed DC motor easy, with quick configuration over USB using the free software. It supports five control interfaces: USB, TTL serial, I²C, analogue voltage (potentiometer), and hobby radio control (RC). This version offers a wide 6.5 V to 40 V operating range and can deliver continuous output currents up to 19 A without a heat sink. Male headers and terminal blocks are included but not soldered, allowing for custom installations.

FEATURES

• Motor Channels: 1
• Control Interface: USB, Non-inverted TTL Serial, I2C, RC Servo Pulses, Analogue Voltage
• Minimum Operating Voltage: 6.5V
• Maximum Operating Voltage: 40V
• Continuous Output Current per Channel: 19A
• Maximum PWM Frequency: 22.5 kHz
• Maximum Logic Voltage: 3.3V
• Reverse Voltage Protection: Y
• Connections Soldered: No

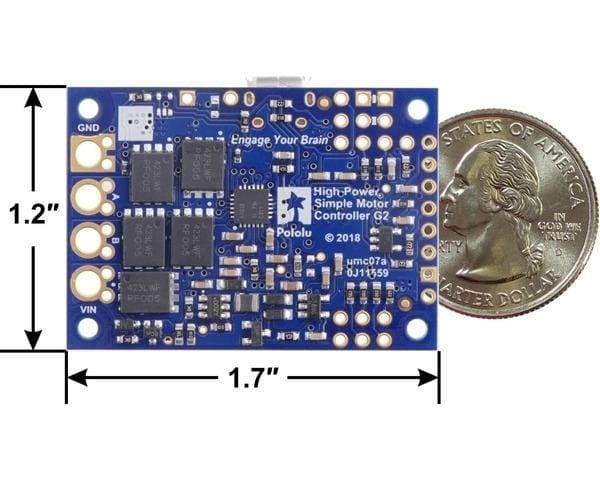

• Size: 1.7" x 1.2" x 0.42"

Key features of the SMC G2 family

• Simple bidirectional control of one brushed DC motor

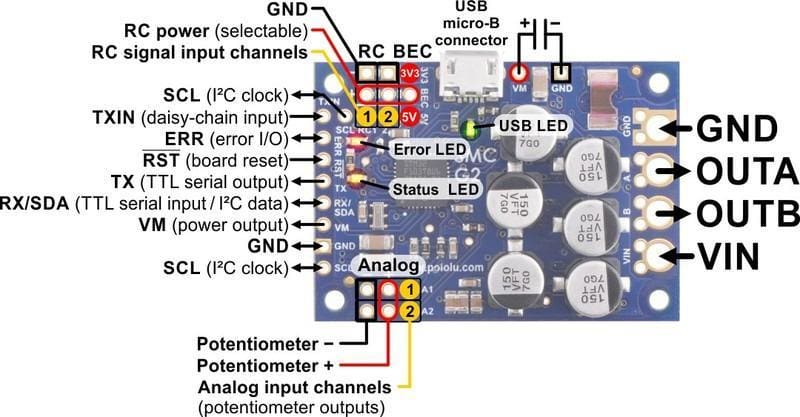

• Five communication or control options:
  1. USB interface for direct connection to a PC
  2. Logic-level (TTL) serial interface for use with a microcontroller
  3. I²C interface for use with a microcontroller
  4. Hobby radio control (RC) pulse width interface for direct connection to an RC receiver or RC servo controller
  5. 0 V to 3.3 V analogue voltage interface for direct connection to potentiometers and analogue joysticks
• Simple configuration and calibration over USB with a free configuration program for Windows
• Reverse-voltage protection
• Hardware current limiting with a configurable threshold
• Current sensing

RESOURCES

• Pololu Simple Motor Controller G2 User’s Guide
• Pololu USB Software Development Kit
• Simple Motor Controller G2 Software and Drivers for Windows
• Dimension diagram of the High-Power Simple Motor Controller G2 18v25 or 24v19
• Dimension diagram of the High-Power Simple Motor Controller G2 18v15 or 24v12
• 3D model of the High-Power Simple Motor Controller G2 18v25 or 24v19
• 3D model of the High-Power Simple Motor Controller G2 18v15 or 24v12
• Drill guide for High-Power Simple Motor Controller G2 18v25 or 24v19
• Drill guide for High-Power Simple Motor Controller G2 18v15 or 24v12
