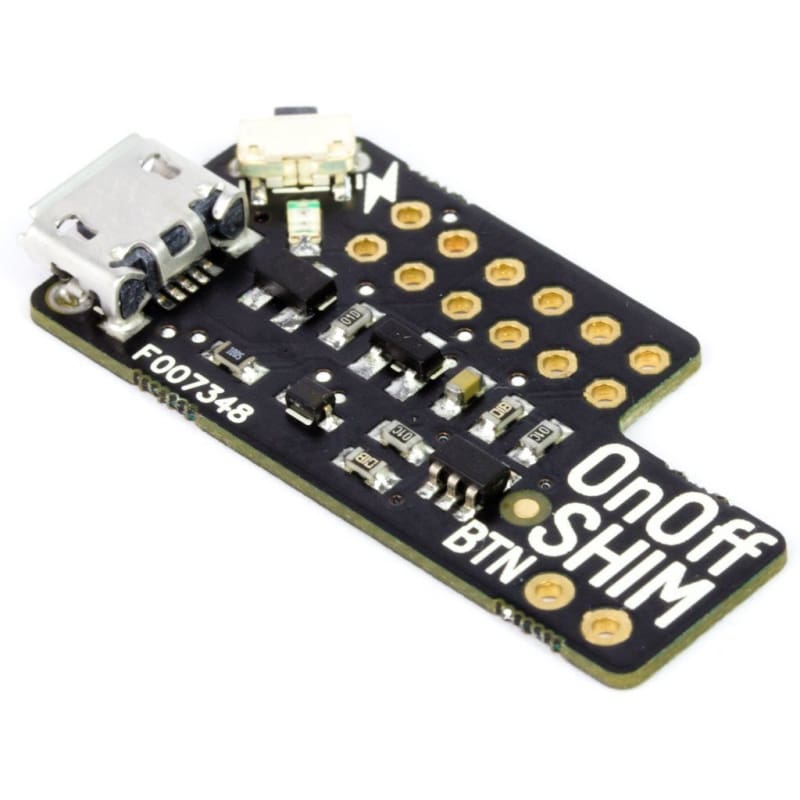

OnOff SHIM for Raspberry Pi (all models)

Product Code: 2807
by Pimoroni
£5.99 inc VAT
£4.99 ex VAT
10 in stock.

More available in 3-5 days.
Available for backorder (more info)

The SHIMs (Shove Hardware in the Middle) are a new range of boards designed to be small, affordable and handy. They're just 0.8mm thick (the bare board, not including mounted components) and designed to be soldered straight onto the GPIO pins of your Pi, if you wish, so that you can use them with HATs and pHATs on top.

Just plug your micro-USB power supply into the micro-B connector on OnOff SHIM, and then press the button once to switch on power and boot up your Pi. After installing the software, you can press and hold the button for one second to initiate a clean shutdown and completely cut the power to your Pi.

Note: This product requires some soldering

  • Super-small SHIM-format board
  • 0.8mm thick PCB
  • Can be used with HATs and pHATs
  • Corner-mounted push button for on/off
  • Micro-B connector for power supply
  • Red status LED
  • Optional breakout pins to connect an external momentary button

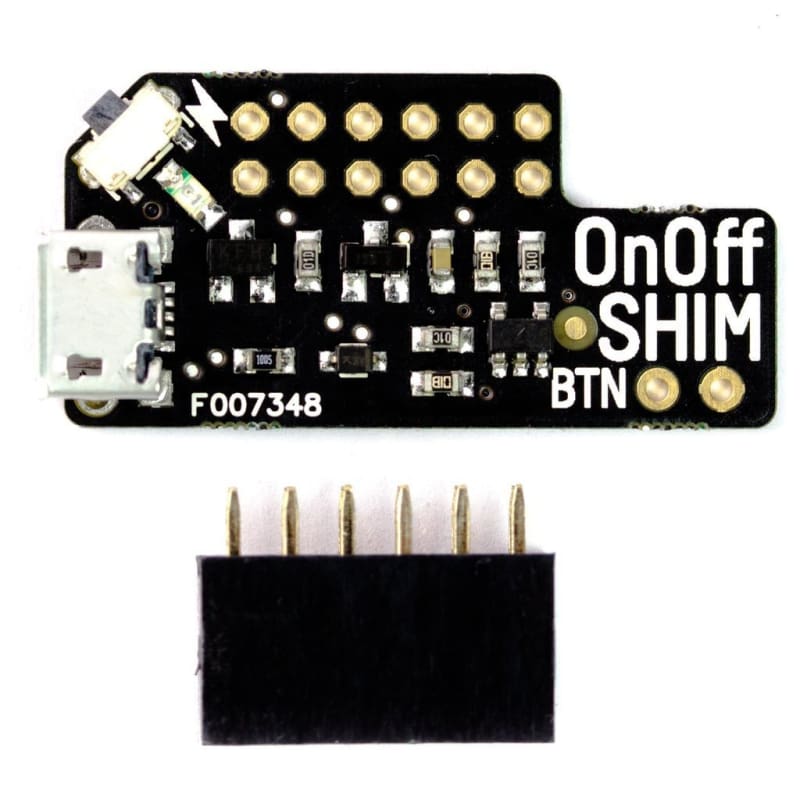

  • 2x6 female header included
  • Supports up to 2.5A power supply
  • Software daemon to shutdown cleanly

To install the software, open a terminal and type curl https://get.pimoroni.com/onoffshim | bash to run the one-line-installer.
