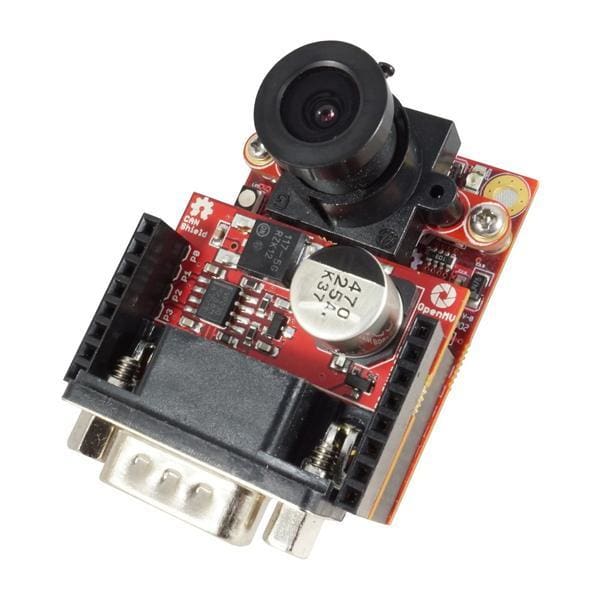

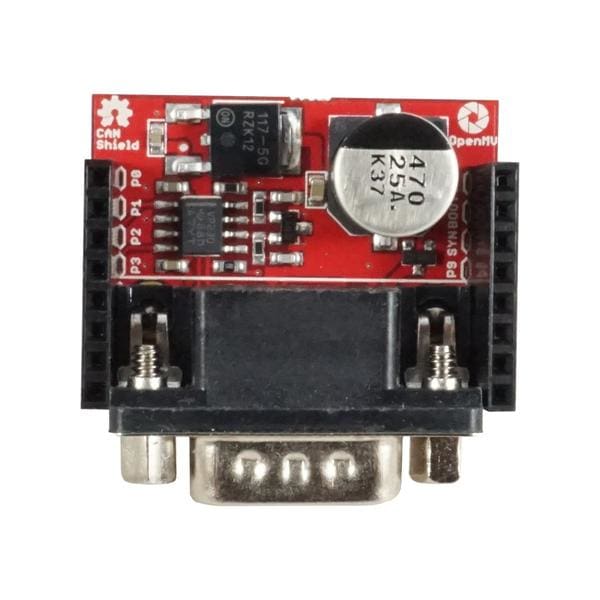

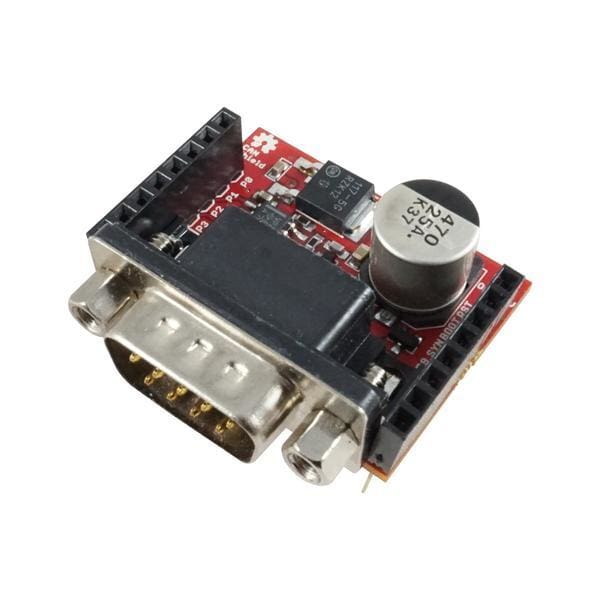

OpenMV Cam H7 CAN Shield

OpenMV  |  SKU: 3804
£17.95 £23.99
Tax included, shipping and discounts calculated at checkout.


DESCRIPTION

The CAN Shield allows your OpenMV Cam to communicate with other devices on the CAN bus. The CAN Shield can handle baud rates up to 1 Mb/s. The CAN Shield additionally features a voltage regulator onboard so you can power your OpenMV Cam with 12V too.

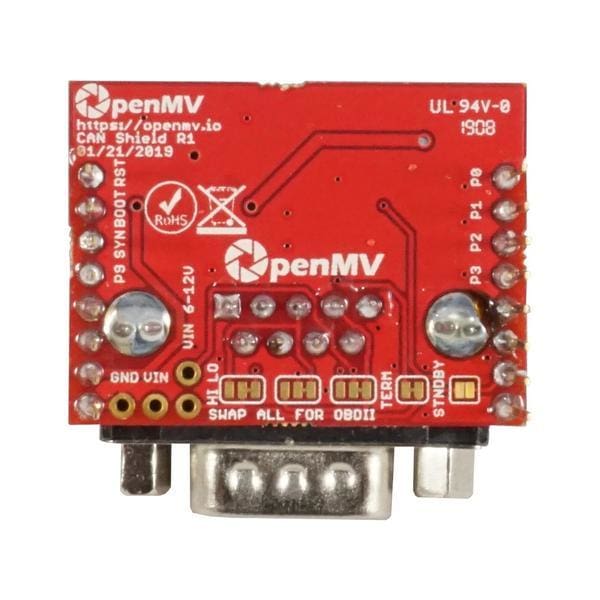

The DB9 connector on the CAN Shield connects to a normal DB9 CAN Connector and also the OBDII bus layout which can be selected via solder bridges on the bottom of the CAN Shield.

The CAN Shield is useful for connecting your OpenMV Cam to a CAN network. For example, with the CAN Shield you can easily hook your OpenMV Cam up to any FIRST Robotics systems. Or, alternatively, up to any automotive CAN networks.

FEATURES
  • Dimensions: 35mm x 35mm x 25mm
  • Weight: 9g
