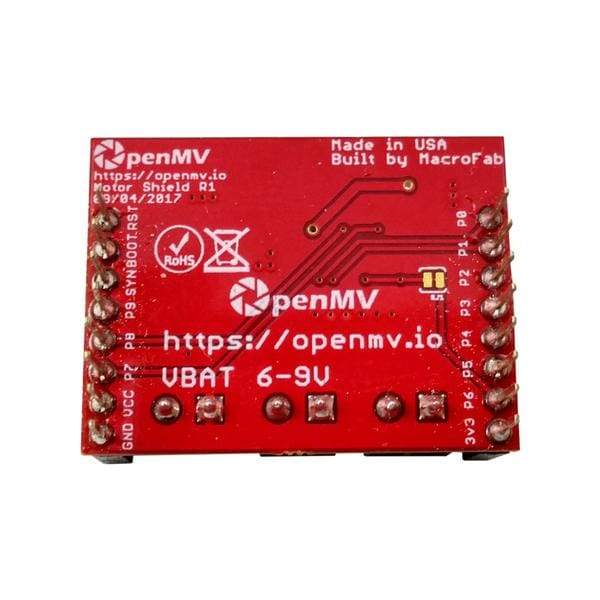

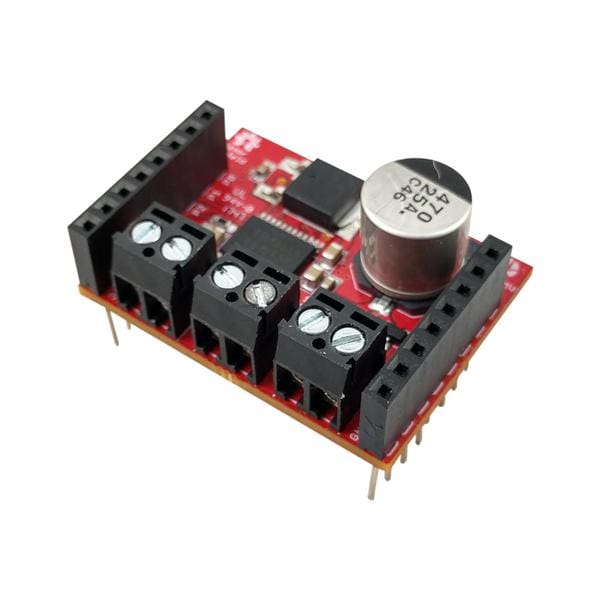

OpenMV Cam H7 Motor Shield

DESCRIPTION

The motor shields provide a convenient way of powering your OpenMV Cam and controlling low-power motors in one package. It features a 5V linear regulator to power your OpenMV Cam from a battery along with a motor driver chip to power two less than 2A low-power motors from the same battery.

The motor driver chip has 2 pins per motor to set its internal H-Bridge direction for each motor and an additional pin per motor for PWM control. So, once you set your driving direction you just have to control the PWM per motor.

Can be used alongside the Servo Shield

The motor driver shield is all you need to make an OpenMV Cam robot that can drive around. You can also use the motor driver shield to control solenoids or any electromechanical circuit that draws less than 2A. The motor driver chip has 4 push-pull outputs.

FEATURES

• Dimensions: 27mm x 36mm x 20mm
• Weight: 10g

RESOURCES

• Motor Shield Datasheet (.pdf)
• Motor Shield Schematic (.pdf)
• Eagle Schematic (.sch)
• Eagle Board (.brd)
• Motor Driver Datasheet: TB6612FNG (.pdf)
• Voltage Regulator Datasheet: NCP1117 (.pdf)
