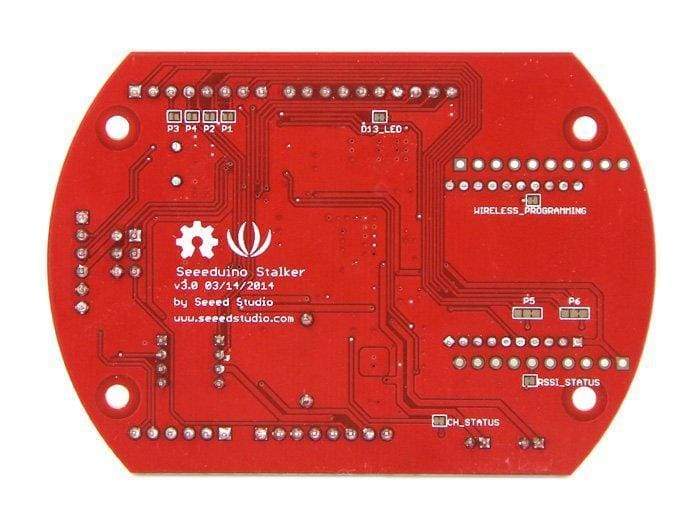

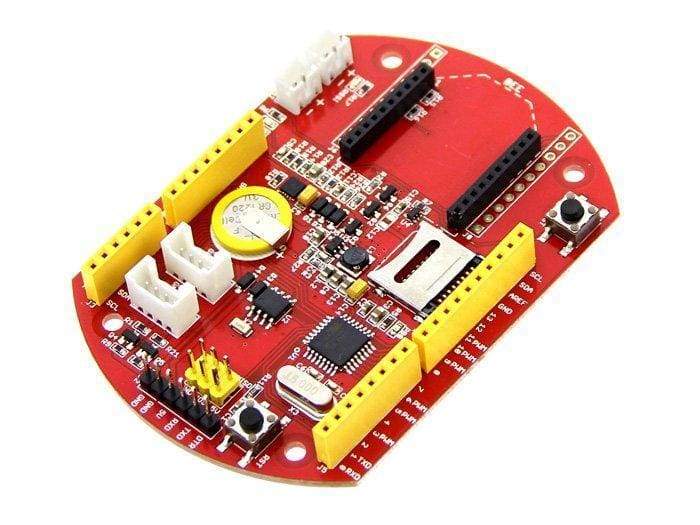

Seeeduino Stalker v3

DESCRIPTION

Seeeduino Stalker v3 is an Arduino compatible main board which has a lot of great features. It is an X-Bee carrier board that can use many different X-Bee modules, such as GPS Bee, Bluetooth Bee and Wifi Bee. It has a charger for lithium polymer batteries and manages a solar panel that can be plugged into the board without any need for extra programming.

It comes with an RTC (Real Time Clock) that will accurately give the time without turning off when power is cut to the board. Data can be stored through the SD card, which acts as a buffer in the event of power loss. The Seeeduino Stalker v3 is very good for applications in an outdoor environment.

Please Note:

• The Input/Output ports on the stalker only work at 0~3.3v.

FEATURES

• Arduino compatible, based on Seeeduino
• Onboard microcontroller: ATmega328P
• Onboard Real Time Clock with a supercap as a backup power source
• Serial interface with DTR for auto reset during programming when operating in standalone mode. (For programming, UartSBee must be bought separately)
• MicroSD card socket
• I2C Pin header (operation voltage is selectable: 5.0V or 3.3V)
• User defined LED
• Bee series socket - 2*10 pin 2.0mm pitch (which will mate with - one at a time - any of the wireless modules: XBee, BluetoothBee, GPSBee or RFBee.)
