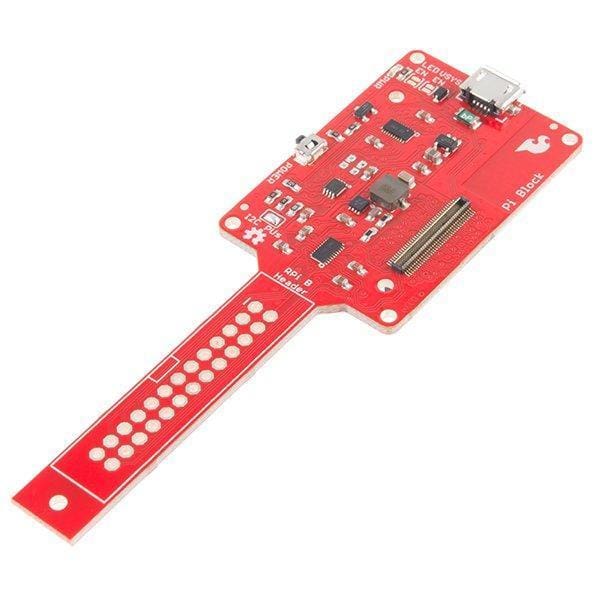

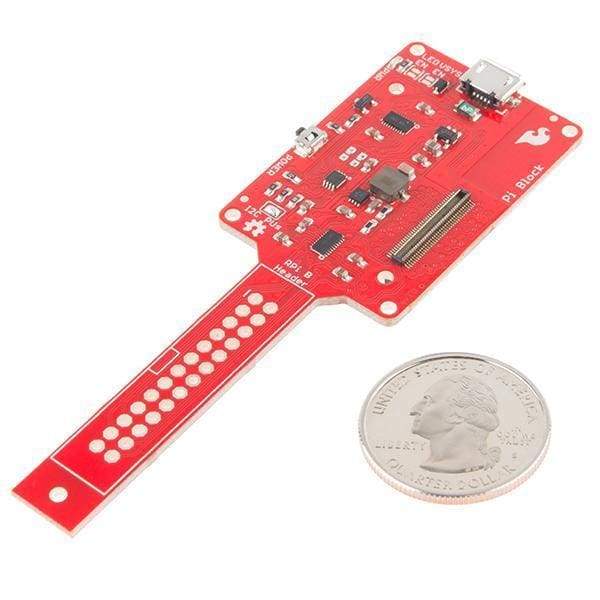

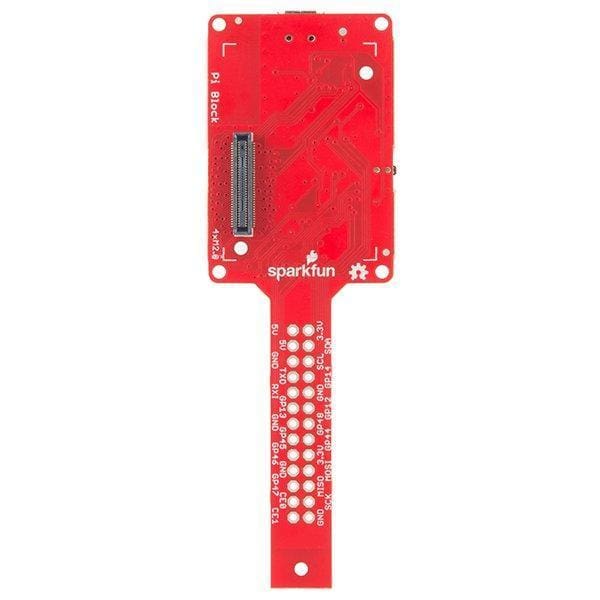

SparkFun Block for Intel Edison - Raspberry Pi B (DEV-13044)

SparkFun  |  SKU: 1836
£17.60 £17.99
Tax included, shipping and discounts calculated at checkout.


DESCRIPTION

The Pi Block lets you use your existing Raspberry Pi B peripherals and expansion boards with your Edison while still providing level-shifted access to basic GPIO, PWM, UART, I2C, and SPI communication!

Since Edison offers a large number of GPIO and communication bus pins, these pins can be mapped to the exact same footprint as the Raspberry Pi B's GPIO header. This block combines the functionality of the GPIO Block and I2C Block with additional features to streamline development.

The Intel Edison is an ultra small computing platform that will change the way you look at embedded electronics. Each Edison is packed with a huge amount of tech goodies into a tiny package while still providing the same robust strength of your go-to single board computer. Powered by the Intel Atom SoC dual-core CPU and includes an integrated WiFi, Bluetooth LE, and a 70-pin connector to attach a veritable slew of shield-like "Blocks" which can be stacked on top of each other. It's no wonder how this little guy is lowering the barrier of entry to the world of electronics!

RESOURCES
